Tune-o-matic Bridge For Archtop Guitar

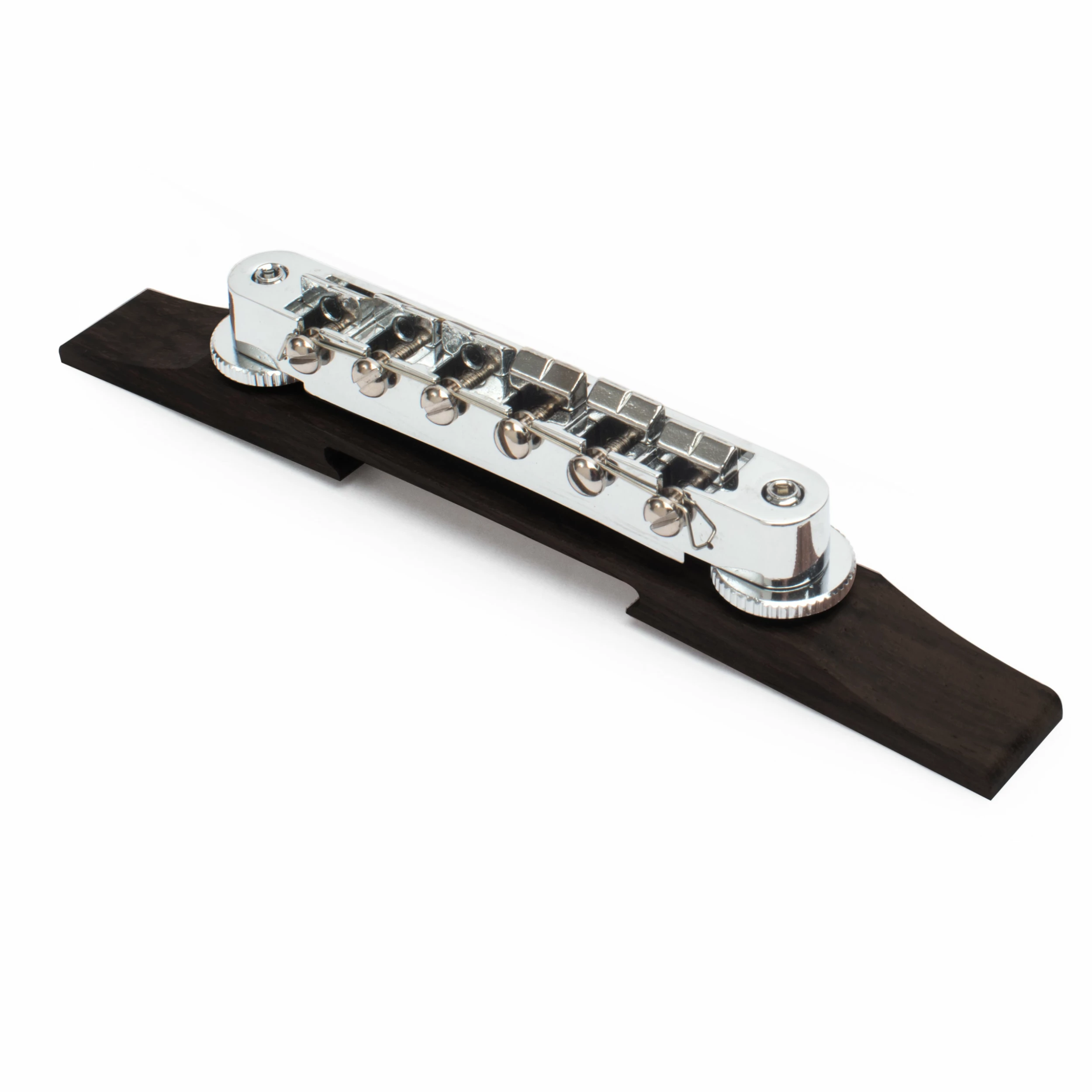

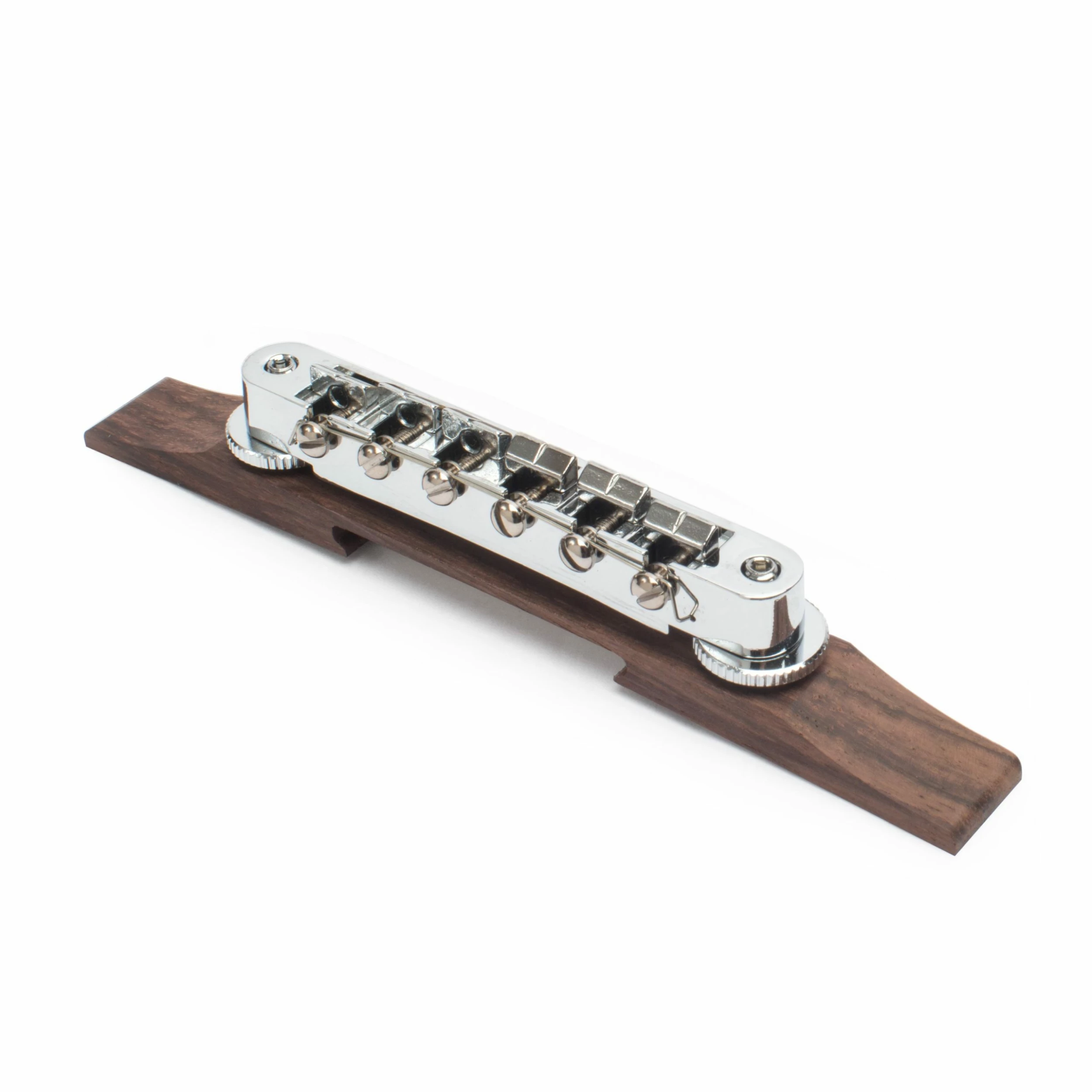

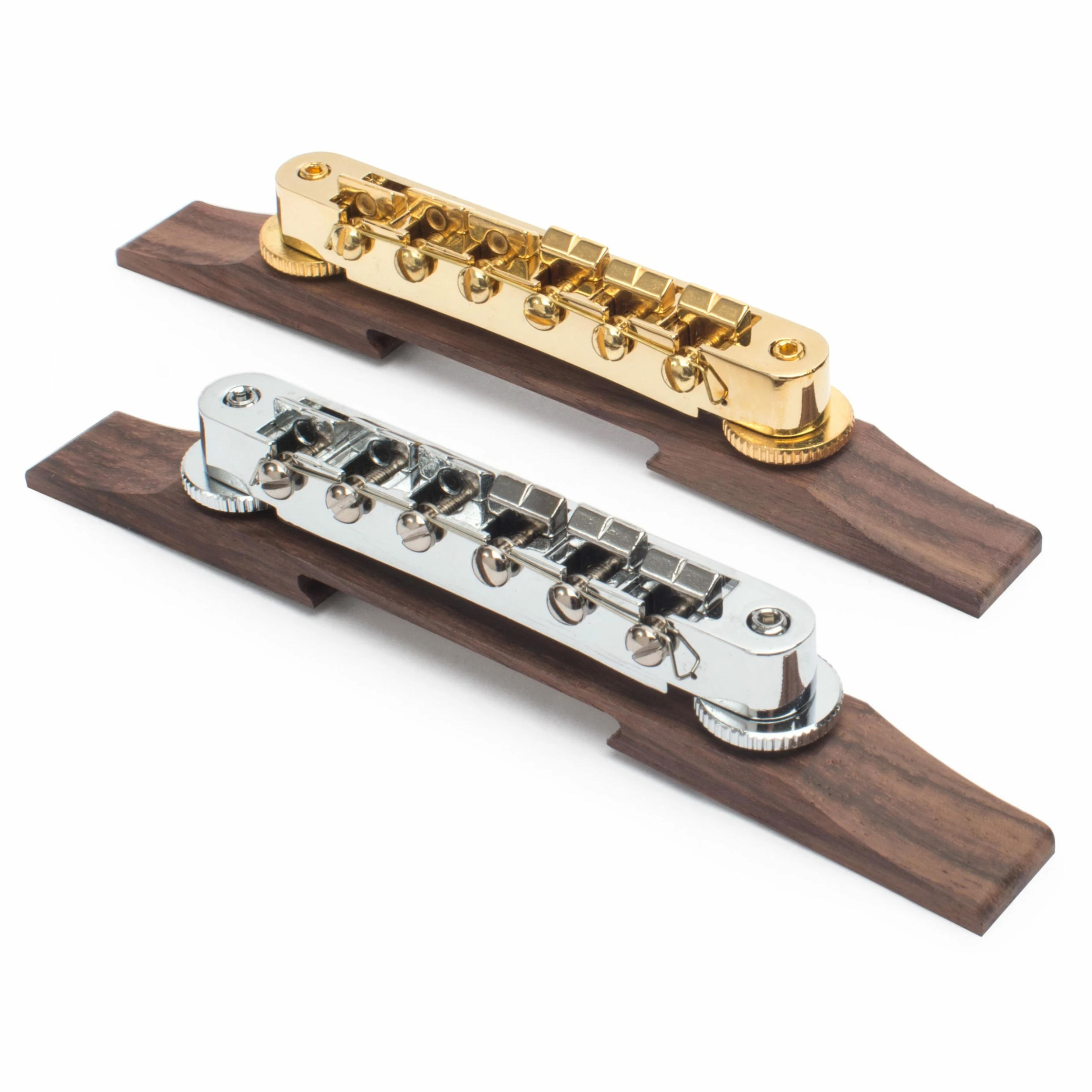

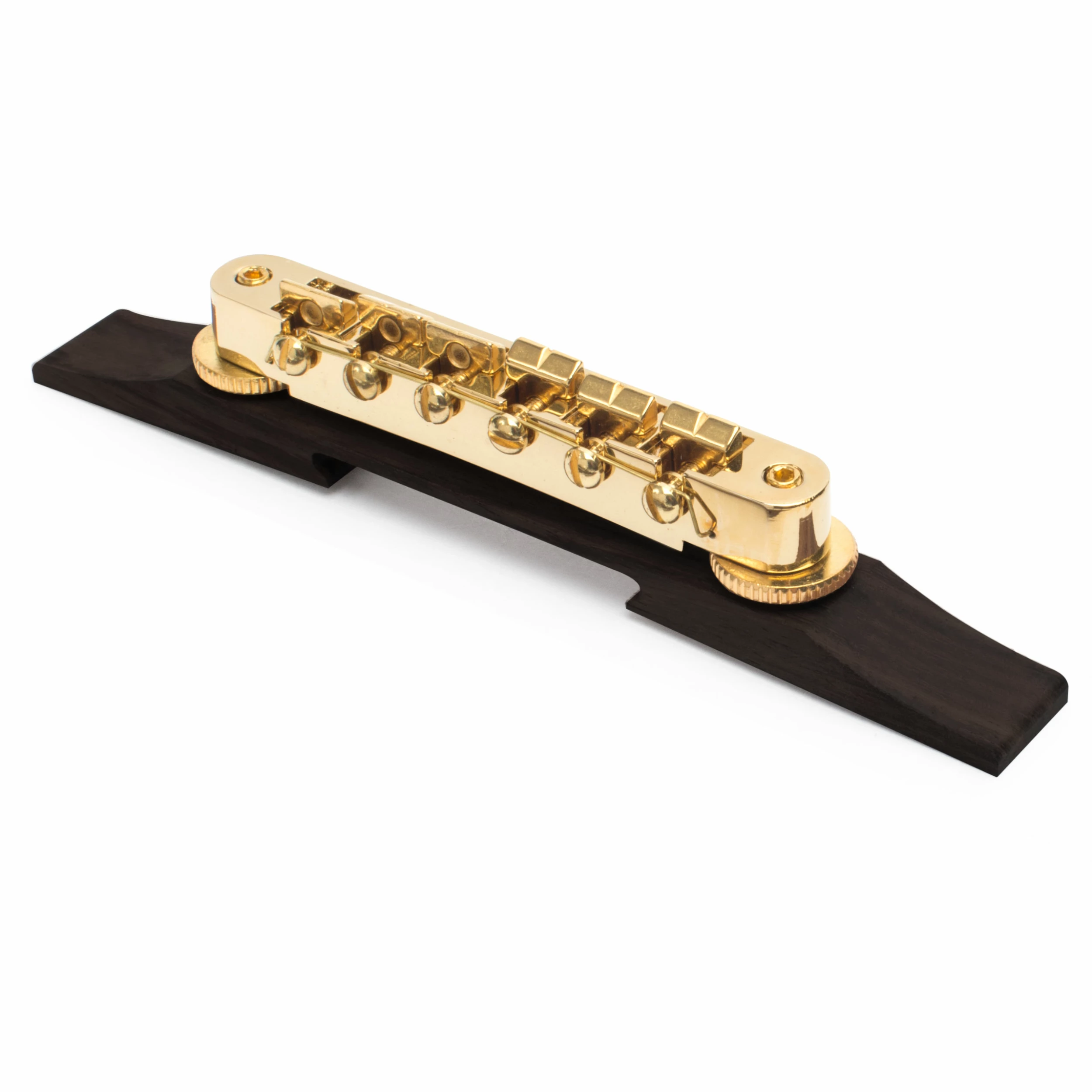

Tune-o-matic mounted on top of a tonewood base. The ideal upgrade for more accurate intonation on archtop and semi-hollow electrics.

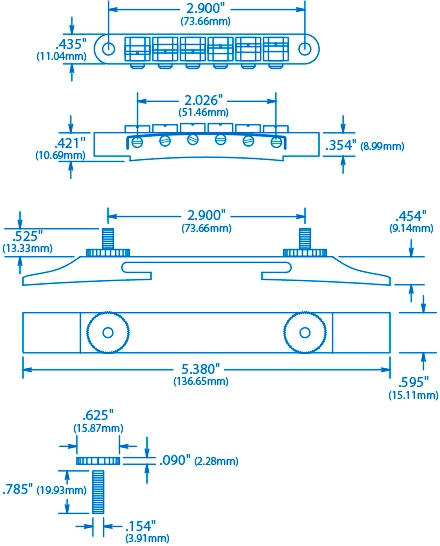

- String spread
2-1/32″
(51.59mm) - Saddle radius
14″
(356mm) - Post spacing
2-29/32″
(73.82mm) - Post threads
M4 x 0.7
The height is thumbwheel-adjustable from approximately 7/8″ to 1-1/4″ (22.23mm to 31.75mm). Saddles are pre-slotted and adjustable to set accurate string intonation.
String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
Stud/post spacing is the distance between the centers of the mounting posts of a bridge or ‘stop’ tailpiece.
Find bridge placement for any scale with our free online tool fret position calculator.
-
- Item #
- Weight
-
- 3959
- 0.160 lbs. (0.07 kg)
-
- 3959-G
- 0.150 lbs. (0.07 kg)
-
- 3961
- 0.160 lbs. (0.07 kg)
-
- 3961-G
- 0.160 lbs. (0.07 kg)
