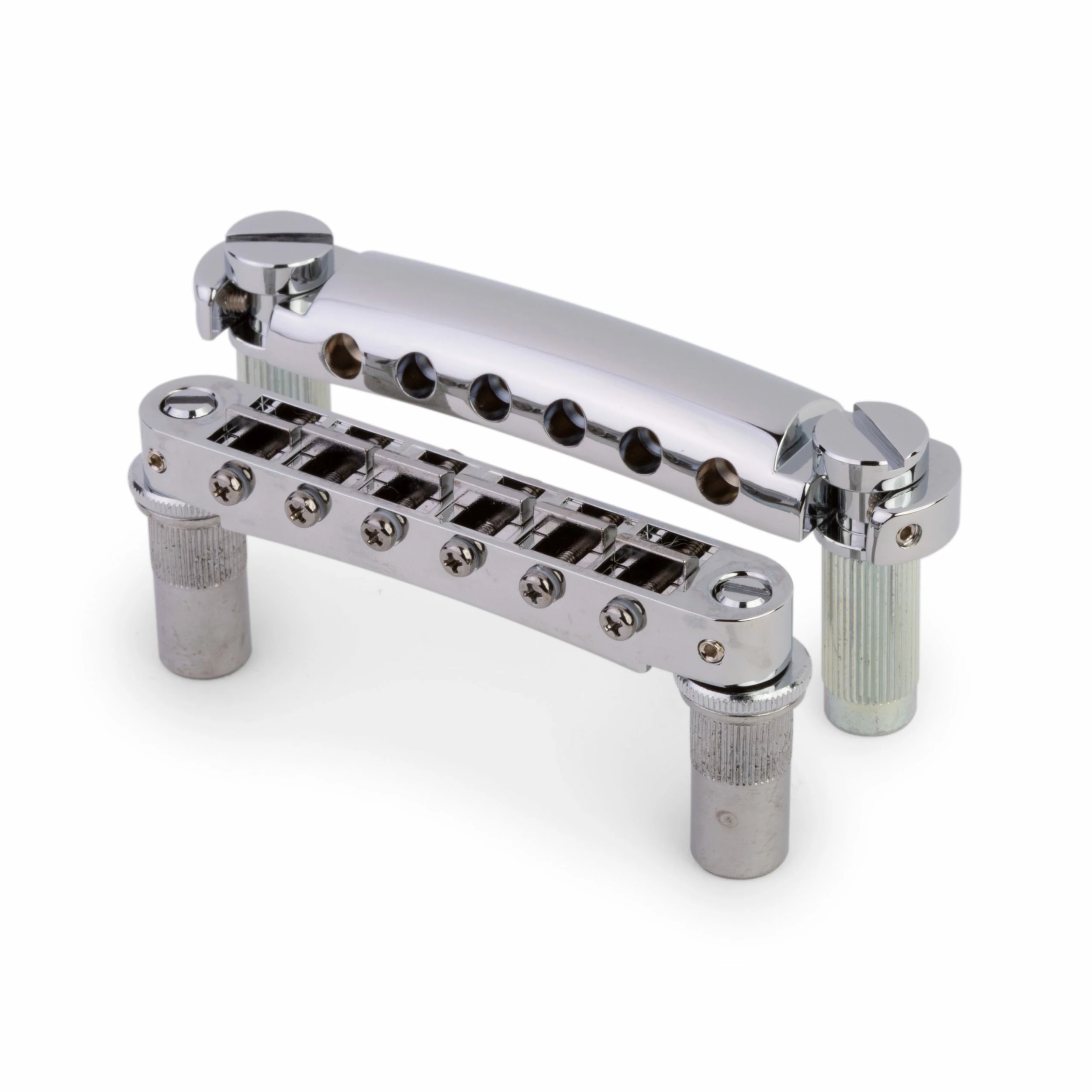

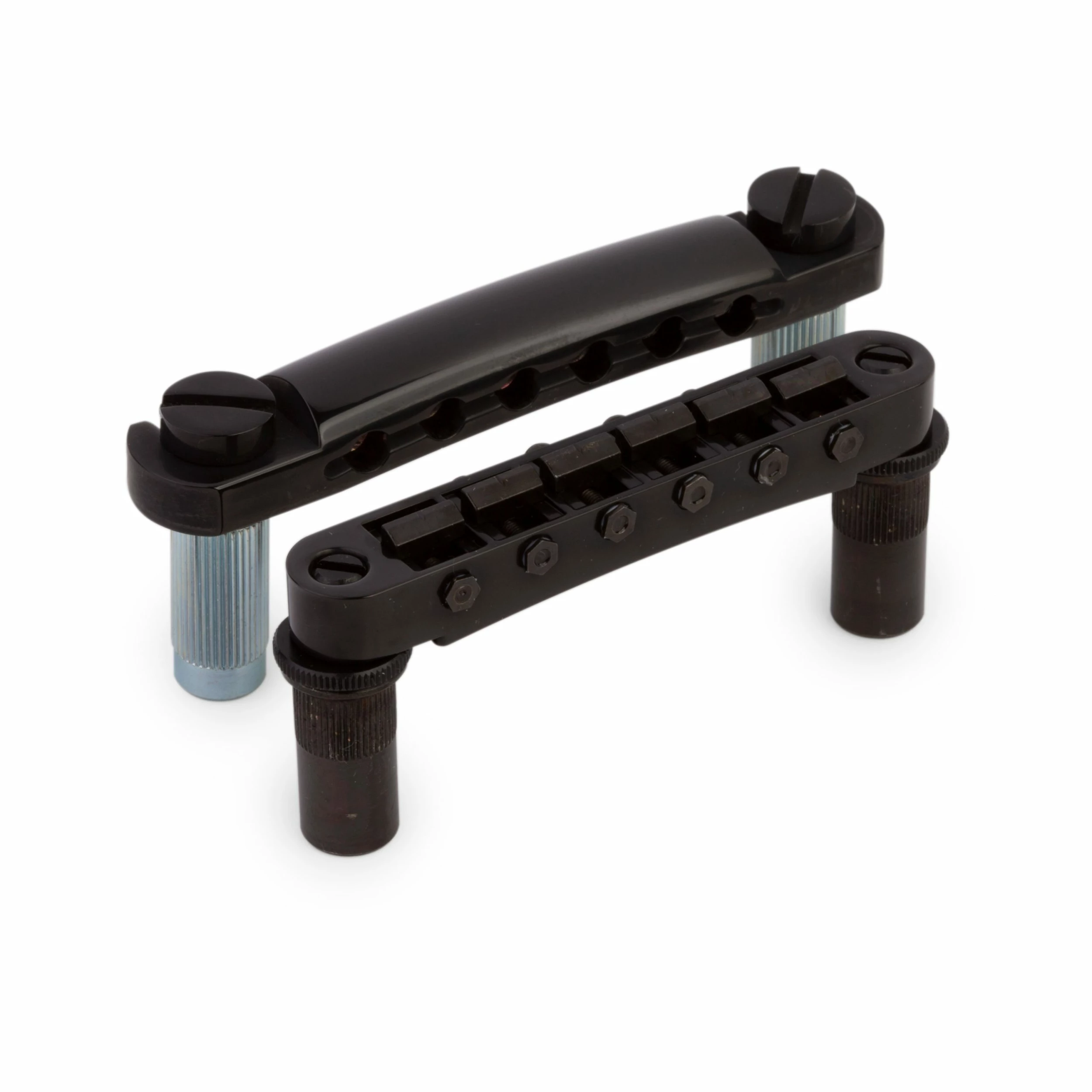

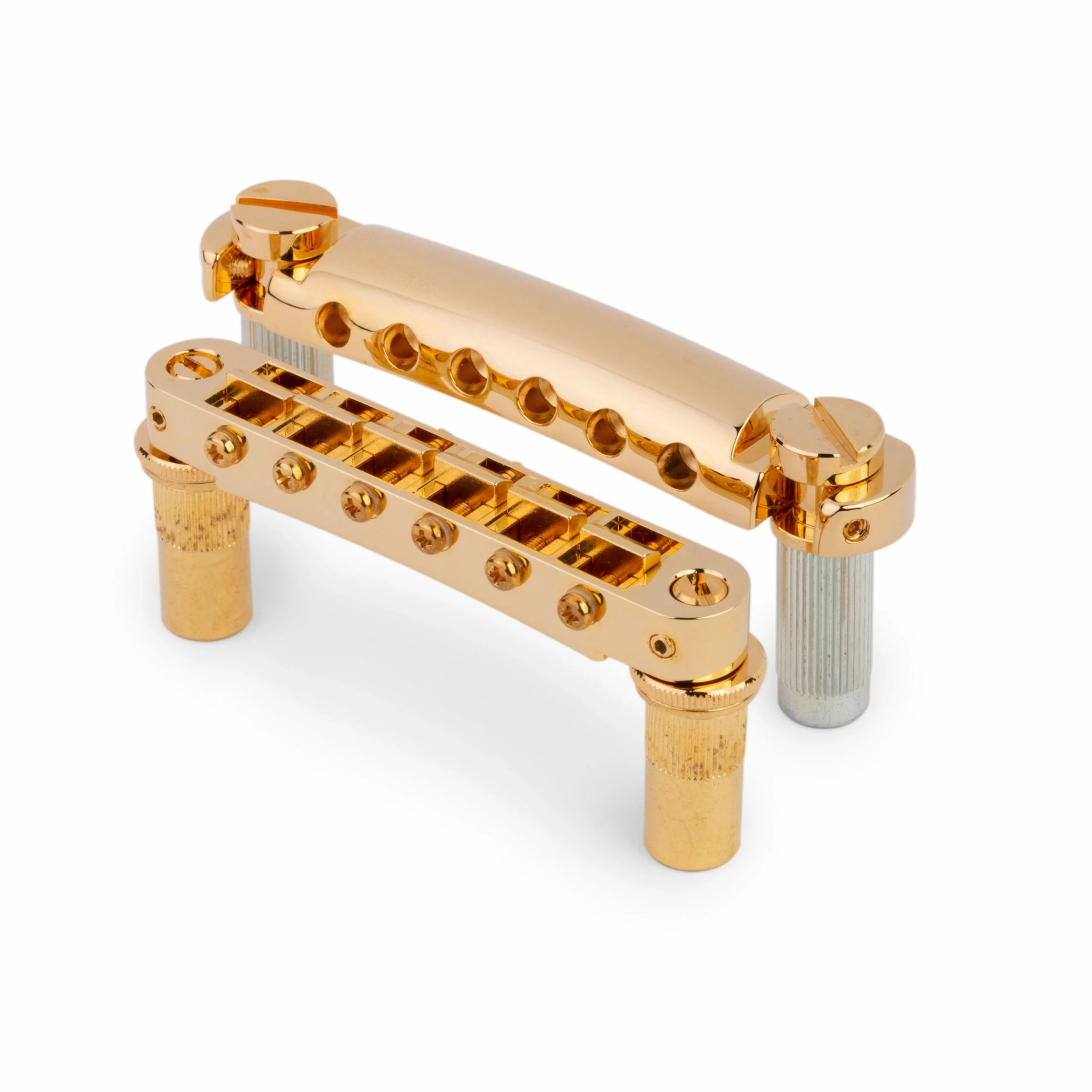

TonePros LPM02 Tune-o-matic Bridge and Tailpiece Set

Upgrade your bridge and stop tailpiece with TonePros. One of the electric guitar’s easiest upgrades, TonePros’ locking functionality instantly improves any stock bridge system. For most guitars, it’s a drop in replacement. The TonePros LPM02 set is designed for “fat post”, metric-style and import guitars and comes with a notched bridge saddles ready for instant installation.

What’s the easiest, most simple way to improve any electric guitar? Upgrading to top-quality hardware! Increasing sustain and improving tuning stability, TonePros’ patented locking functionality makes guitars come alive with rich, vibrant harmonics, transferring more resonance from strings to hardware to guitar, causing superior overall tone. Simply put, TonePros’ locking hardware makes the entire guitar ring as one solid piece.

Includes the TonePros T3BT Tune-o-matic bridge and T1Z stop tailpiece, posts and bushings.

• String spread
  2-1/16″
  (52mm)
• Saddle radius
  12″
  (304.80mm)
• Post spacing
  2-29/32″
  (73.5mm)
• Post threads
  M8 x 1.25

TonePros T3BT features:
• Notched saddles
• Closed-bottom construction
• Includes posts and bushings
• Zamak body with brass saddles and posts for deep, rich tone
• Adjustable with Philips head screwdriver

T1Z Stop Tailpiece specs:

• Stud spacing
  3-7/32″
  (82mm)
• Post threads
  5/16-24

TonePros T1Z Stop tailpiece features:
• Zamak body with brass studs for deep, rich tone.

Positioning the bridge
Find bridge placement for any scale with our free online tool fret position calculator.
