StewMac Single-coil pickups

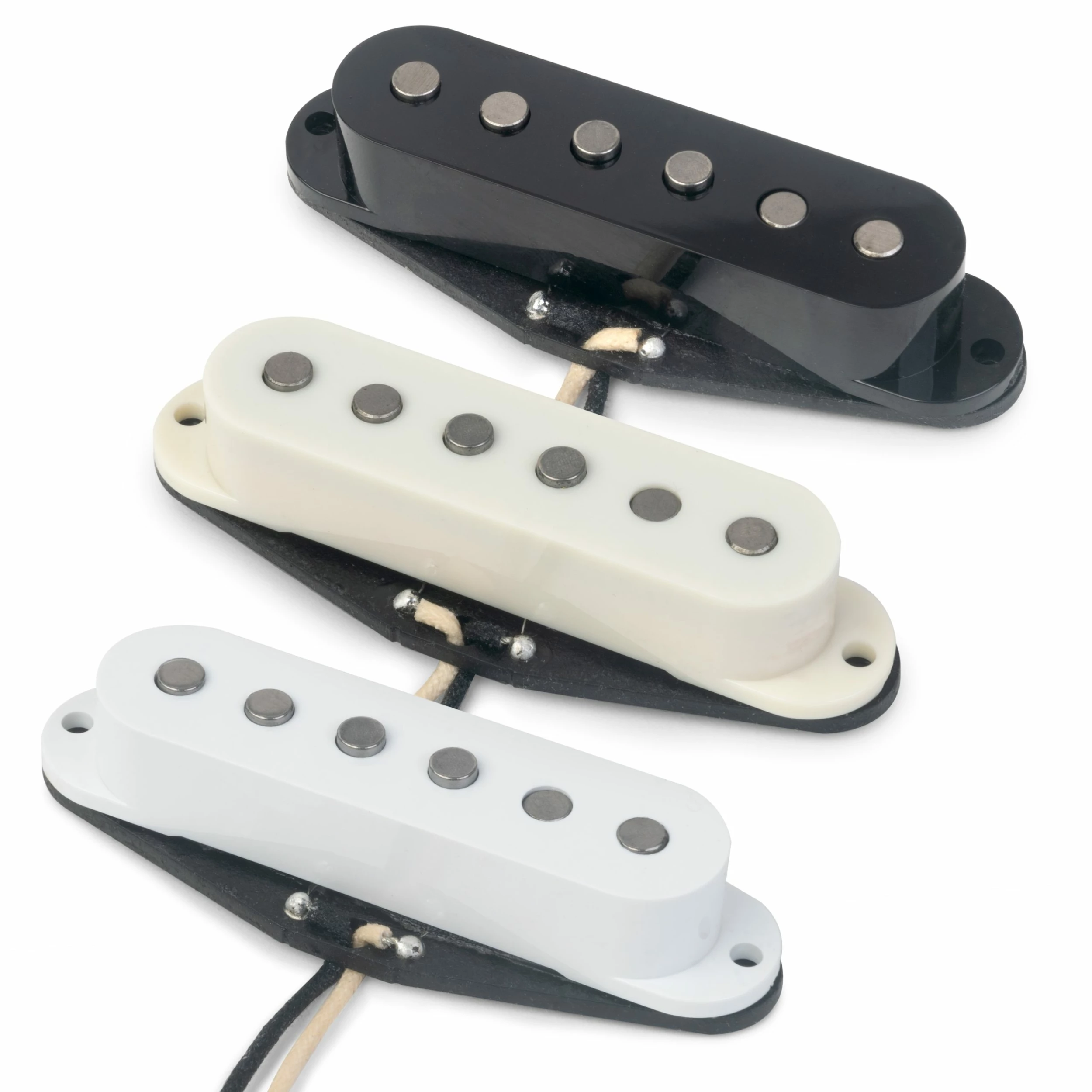

Wake up your guitar! Inspired by legendary pickups of the ’50s, our single-coil pickups are built for the modern player to bring out the best in your tone.

The new standard for replacement pickups
Many stock single-coil sound weak, microphonic, and aren’t even built right! Ours are built with real Alnico 5 magnets with staggered polepieces just like the best vintage Strats and custom shop creations.

Alnico 5 magnets produce a clear tone with more pronounced highs and a tighter low end. It’s the right combination for defined clean tones and overdriven sounds that don’t get lost in the mix.

They’re custom-wound for each position for a perfectly balanced tone. The middle-position pickups are reverse wound, reverse polarity, for hum cancellation at the #2 and #4 switch positions.

Looking for extra punch? Our Overwound Single-coil Pickups are specially wound to the 7.6K ohm range for the bridge or neck position.

Low noise for modern players

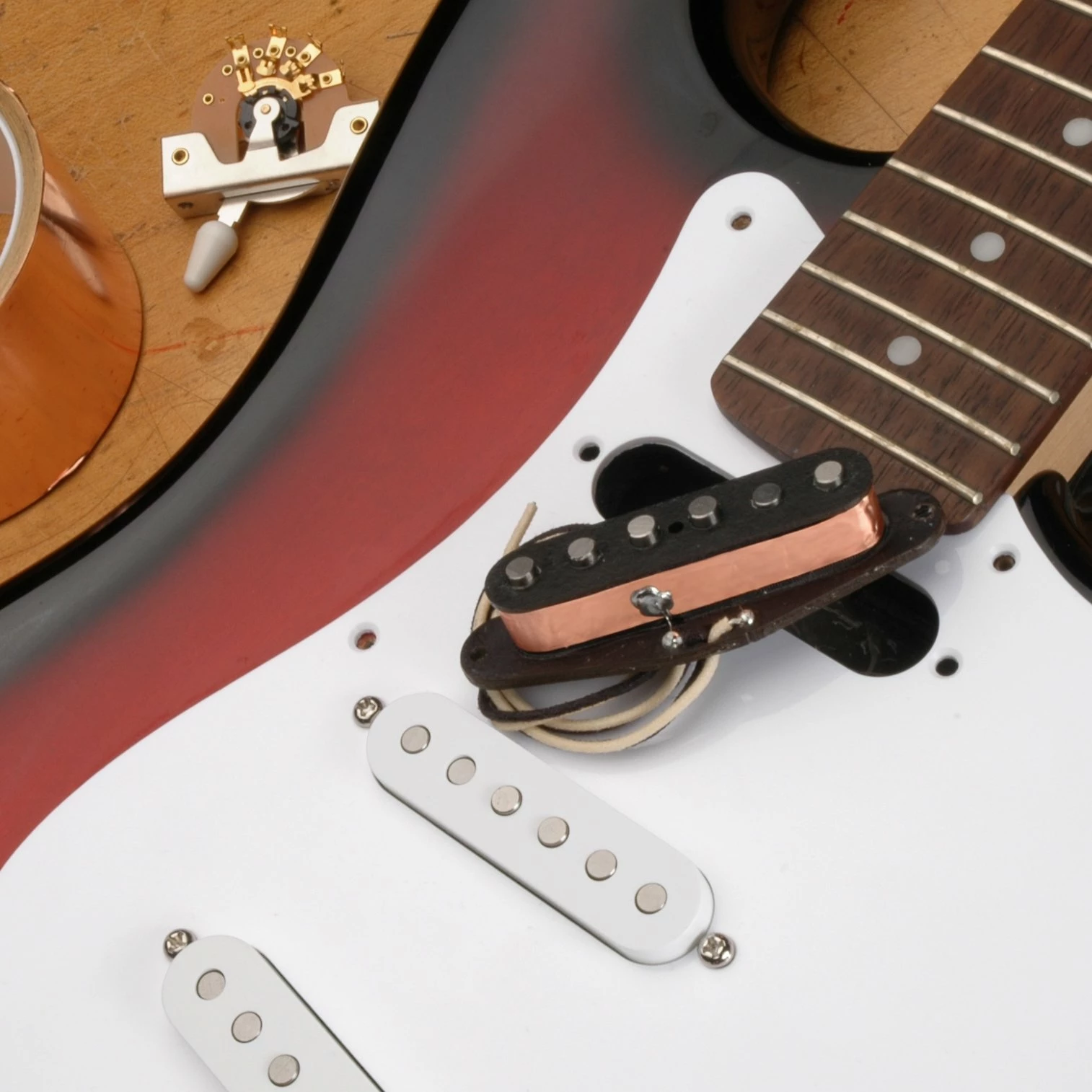

Each pickup has a copper shield surrounding the coil, a modern feature for 60-cycle hum suppression not found on vintage pickups.

Specifications

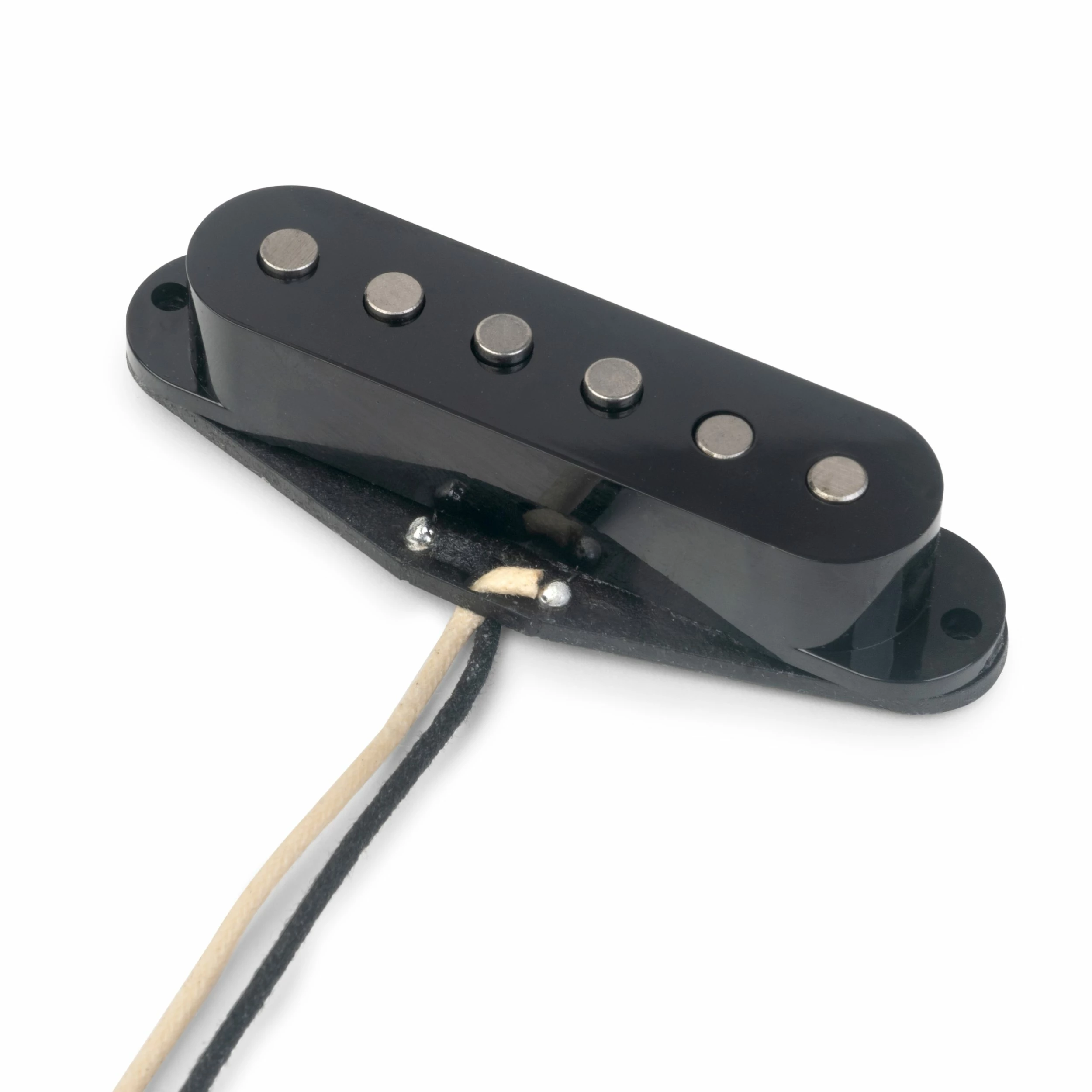

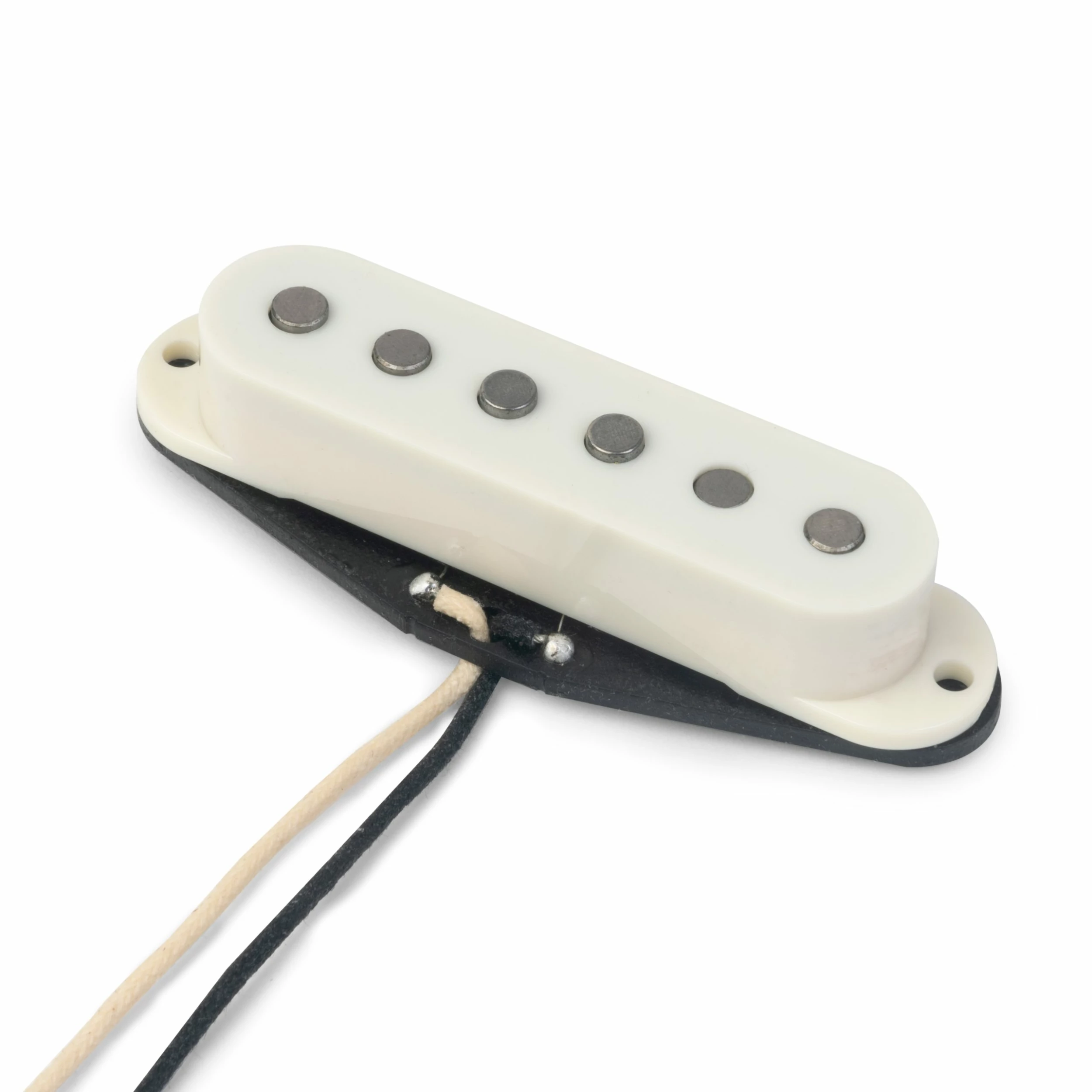

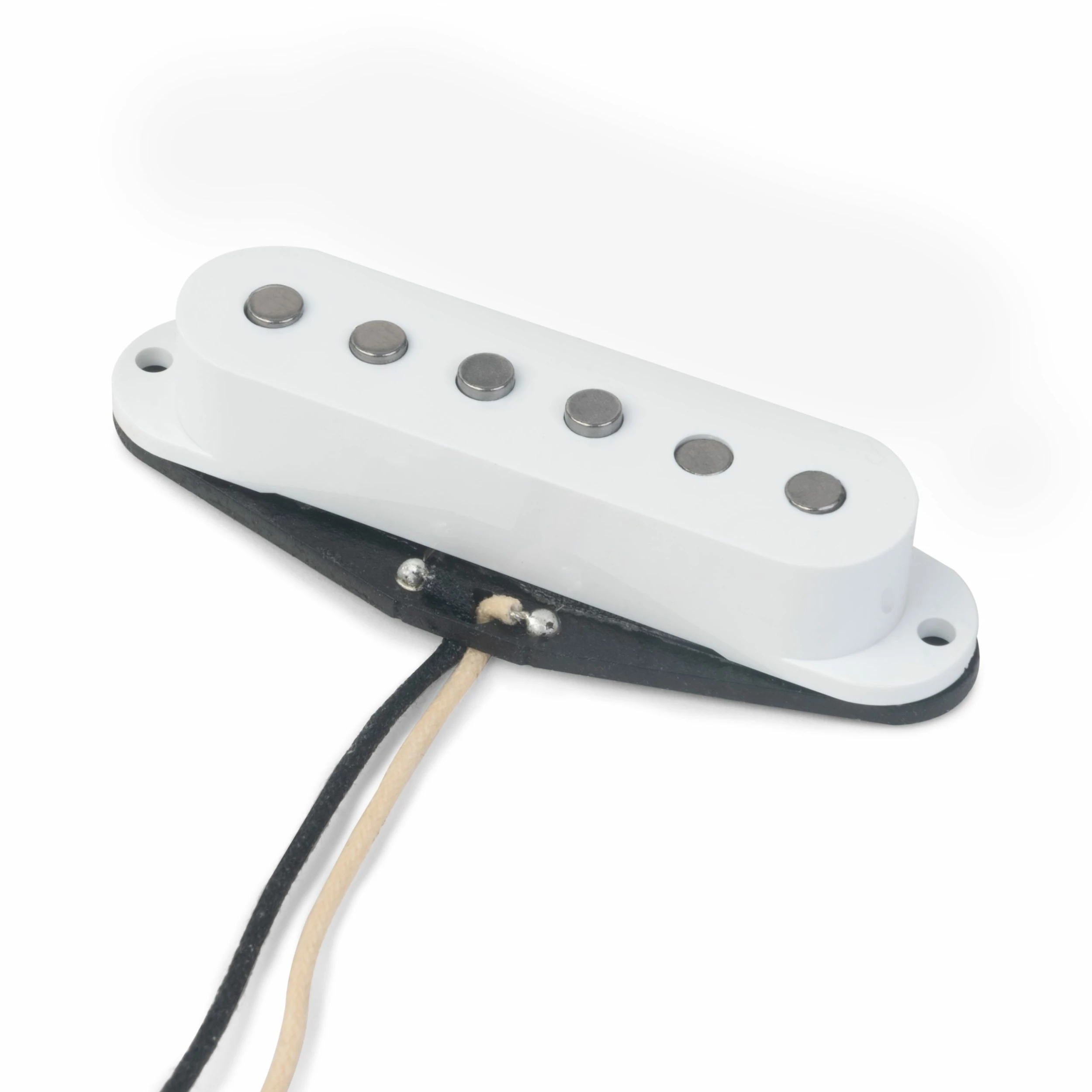

• Medium output single-coil pickup
• Polepiece spread: 2.063″ (54.4mm)
• Poly-coated Formvar 42 AWG coil wire
• Potted and shielded to suppress noise
• Alnico 5 magnets
• Push-back cloth-insulated lead wires

Neck Position

• Output: 6.0K range
• Polarity: South
• Winding: Standard

Middle Position

• Output: 6.0K range
• Polarity: North
• Winding: Reverse (RWRP)

Bridge Position

• Output: 6.4K range
• Polarity: South
• Winding: Standard


Overwound Neck/Bridge Postion

• Output: 7.6K range
• Polarity: South
• Winding: Standard

Dimensions

• Length: 3.30″ (83.82mm) including mounting tabs
• Mounting screw spacing: 3.04″ (77.12mm)
• Width: 0.95″ (24.2mm) including bottom flatwork

Mounting screws, compression tubing, and wiring diagrams are included.
