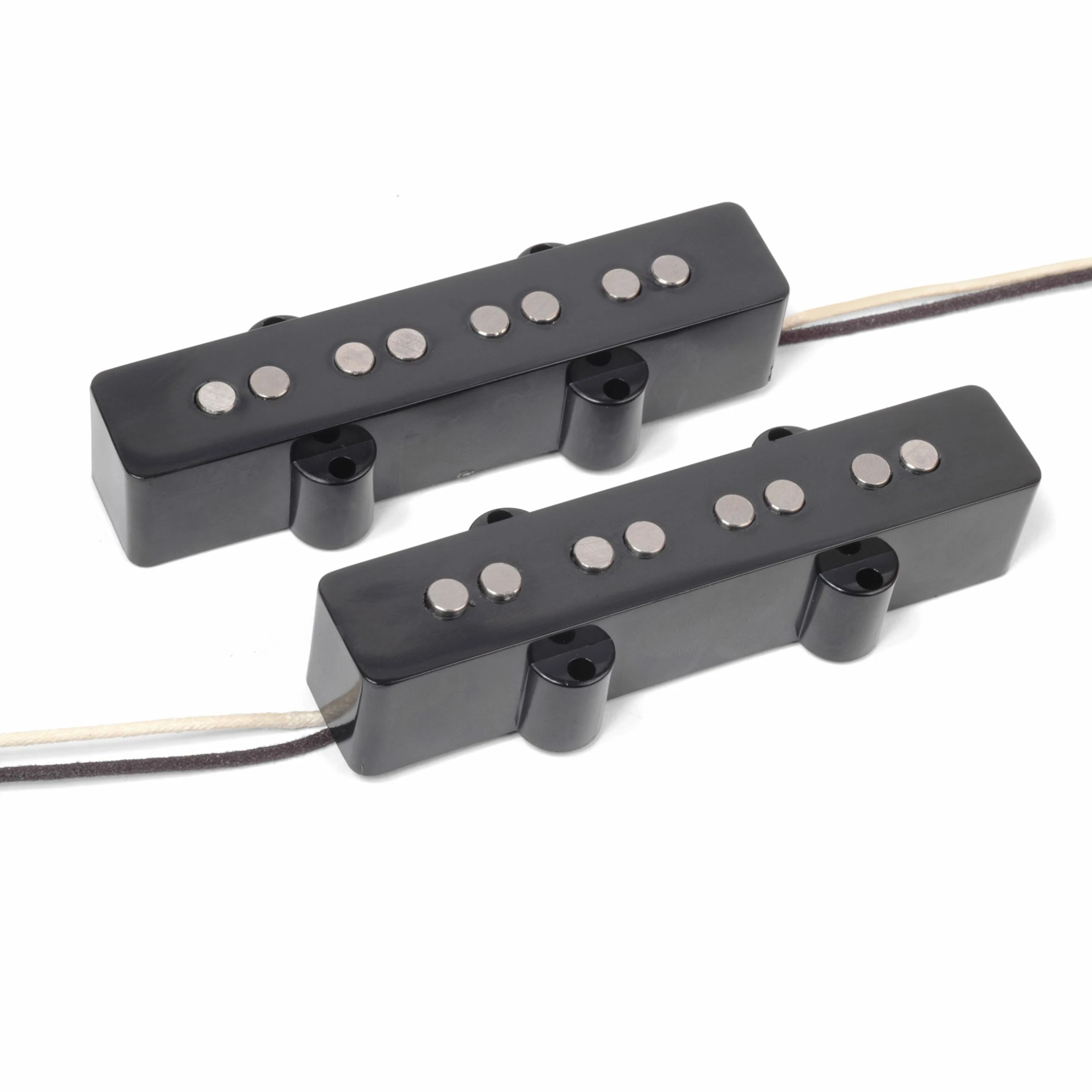

StewMac Pickups for Jazz Bass

Built with the same specs that powered your favorite basses—now with the reliability needed by today’s players.

The new standard for replacement pickups
Replace those muddy and dark stock pickups! When you need to hold down the song with deep bass and classic mid-range tone, these are the pickups to choose. The Alnico 5 magnets produce a clear tone with more pronounced highs and a tighter low end, perfect for bass frequencies.

Use them as a set
When using the neck and bridge as a set, the reverse-wound, reverse-polarity coils are hum-cancelling when both pickups are at full volume.

Neck postion specifications

• Medium output single-coil pickup
• Polepiece spread: 2.187″ (55.5mm)
• Poly-coated Formvar 42 AWG coil wire
• Potted to suppress noise
• Reverse wound for noise canceling
• Alnico 5 magnets, south polarity
• Push-back cloth-insulated lead wires

Bridge position specifications

• Medium output single-coil pickup
• Polepiece spread: 2.312″ (58.7mm)
• Poly-coated Formvar 42 AWG coil wire
• Potted to suppress noise
• Alnico 5 magnets, north polarity
• Push-back cloth-insulated lead wires

Output

• Neck position: 5K ohm range
• Bridge position: 5.13K ohm range

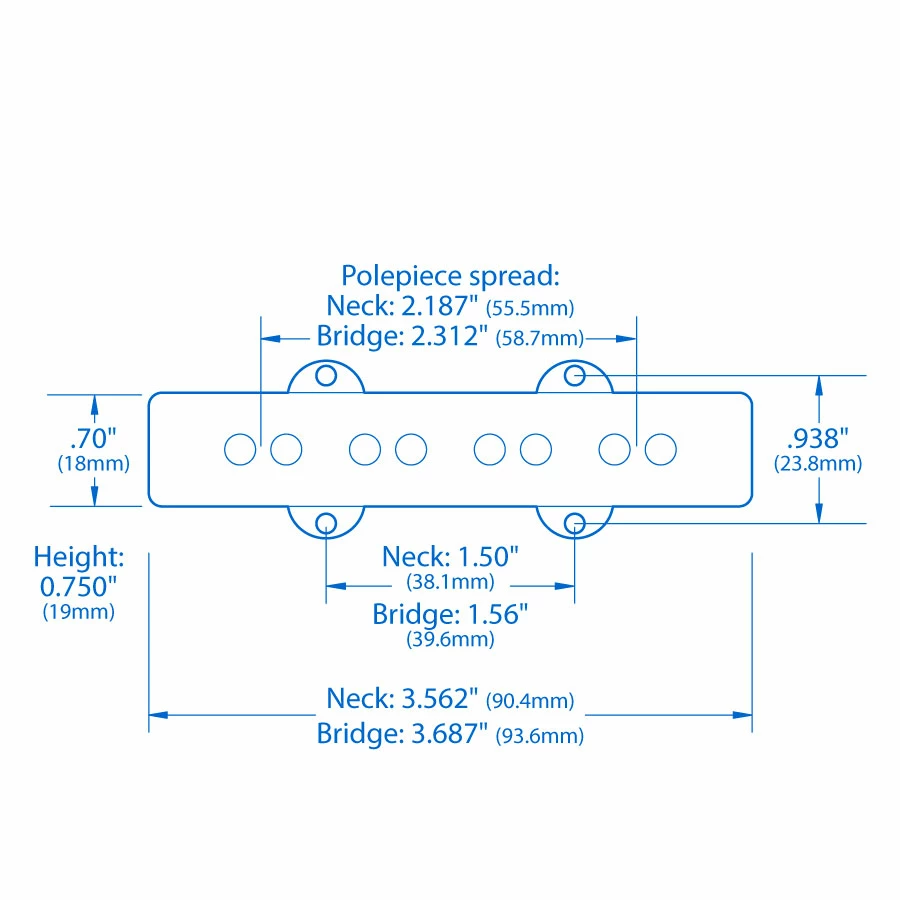

Neck position dimensions

• Length: 3.562″ (90.4mm)
• Width: 0.70″ (18mm) not including mounting tabs
• Mounting screw spacing: 0.938″ (23.8mm)
• Height: 0.750″ (19mm)

Bridge position dimensions

• Length: 3.687″ (93.6mm)
• Width: 0.70″ (18mm) not including mounting tabs
• Mounting screw spacing: 0.938″ (23.8mm)
• Height: 0.750″ (19mm)

Compressible foam pad for height adjustment, mounting screws, and wiring diagrams are included.

Note: Jazz Bass pickup dimensions have varied slightly over the years. Please measure your pickup cavities before replacing older pickups.

Jazz Bass® is a registered trademark of Fender Musical Instruments Corporation.
