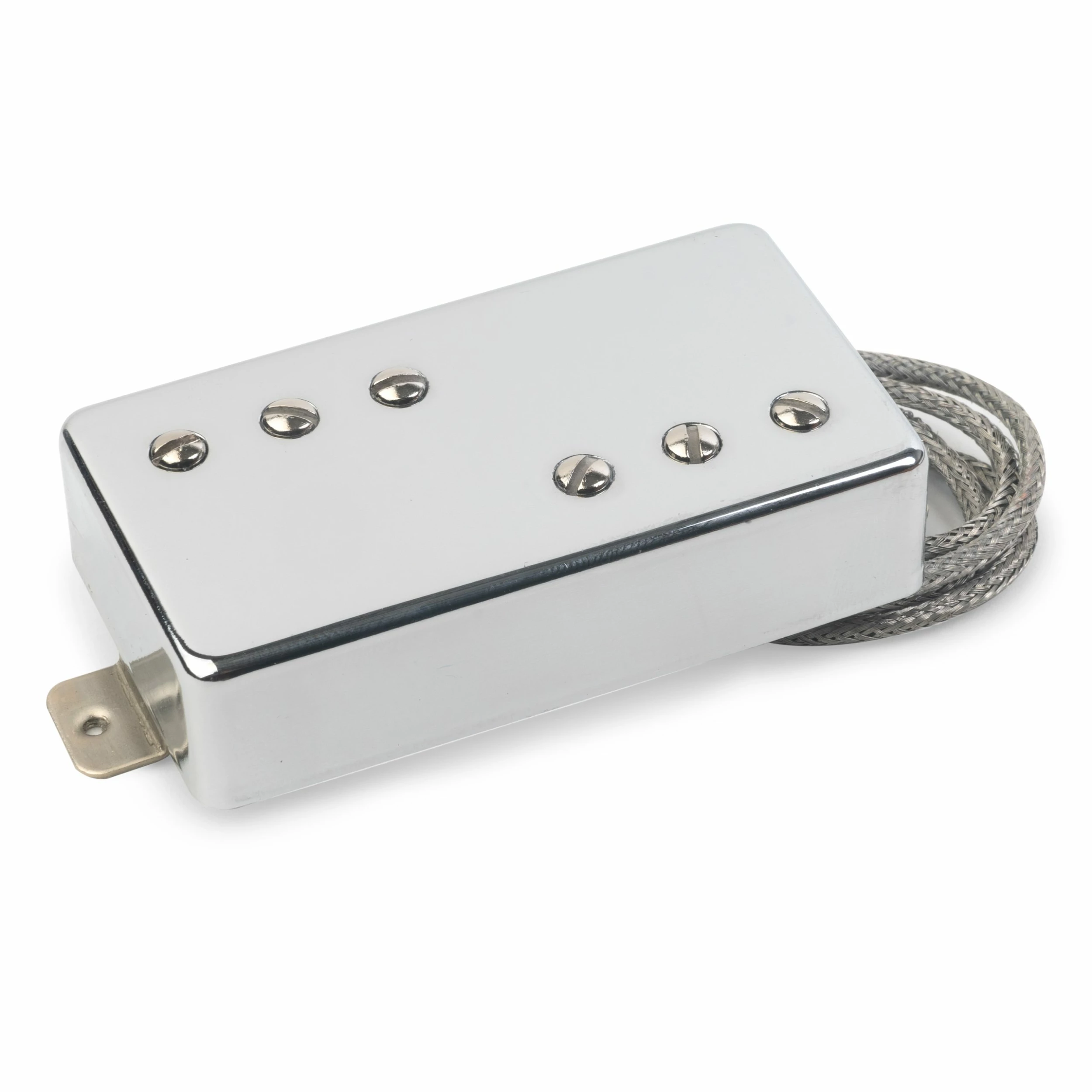

StewMac Off-set Pole Humbucker Pickups

A new twist on the covered humbucker! Get more control of your treble strings and a completely unique look.

Familiar humbucker tone with a custom cover
We loved the look of the storied Fender Wide Range humbucker, but wanted the versatile tone of the Alnico 5 magnet. Once we combined the two we got the best of both worlds—and it fits in standard humbucker routs, pickguards, and mounting rings.

The offset cover exposes the polespieces closer to the bridge, letting you tune the treble strings for a perfectly balanced attack. It’s easy to make your chords sound fuller with more high end sparkle. The Alnico 5 magnet produces a tone with well defined highs, great mid-range punch, and clear, smooth bass.

Each is custom-wound for neck and bridge positions. The bridge is wound hotter for a more balanced tone and output.

Specifications

• Medium output humbucker pickup
• Neck polepiece spread: 1.970″ (50mm)
• Bridge polepiece spread: 2.015″ (51mm)
• Poly-coated 42 AWG coil wire
• Potted to suppress noise
• Alnico 5 magnet
• Single-conductor braided shield lead wires

Output

• Neck postion: 7.9K ohm range
• Bridge position: 8.3K ohm range

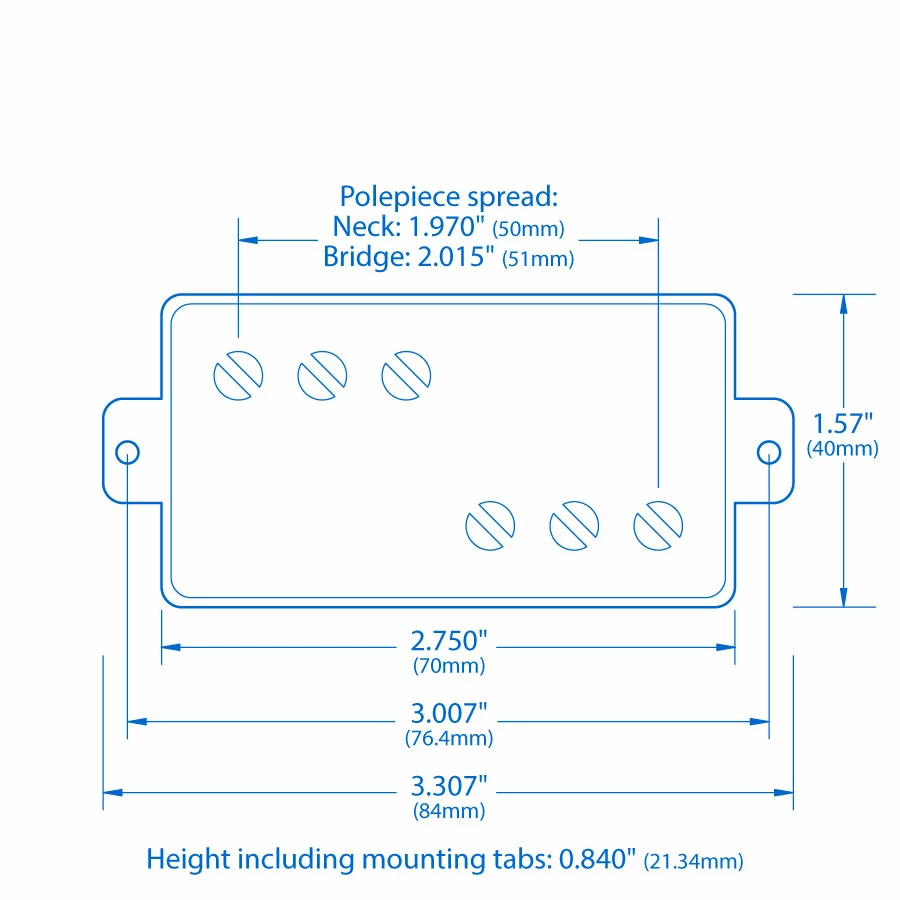

Dimensions

• Length including mounting tabs: 3.307″ (84mm)
• Length not including mounting tabs: 2.750″ (70mm)
• Mounting screw spacing: 3.007″ (76.4mm)
• Width 1.57″ (40mm)
• Height: 0.840″ (21.34mm) including mounting tabs

Please note: this pickup won’t replace original or some reissue Fender Wide Range humbuckers, which have different dimensions.
