StewMac Fretbar Understring Leveler – StewMac

StewMac Fretbar Understring Leveler

How do you level the frets at the right tension?
One of the most challenging things to get right with any setup or fret work is knowing the frets will be level under actual string tension and playing conditions. Now we’ve made it easy.

Our solution for this was the invention of the Erlewine Neck Jig—the industry standard when it comes to simulating string tension to get the most accurate fretwork possible. But let’s face it, sometimes jobs are too small to strap them into the Neck Jig, or you need to work outside your shop where the neck jig isn’t practical. We knew there had to be a better answer.

Now, you can level your frets…with the strings ON!
Matt Brewster from 30th Street Guitars brought us this amazingly simple (but effective) idea for getting perfect fret dresses with the strings still on the guitar. This great idea became the StewMac Fretbar® Understring Leveler, or simply the Fretbar. This revolutionary new tool lets you level your frets under full tension without removing the strings. It’s designed to work with our 1″ wide 3M Stikit Gold Abrasives for ultra-fast set up and leveling.

Fret work without guesswork

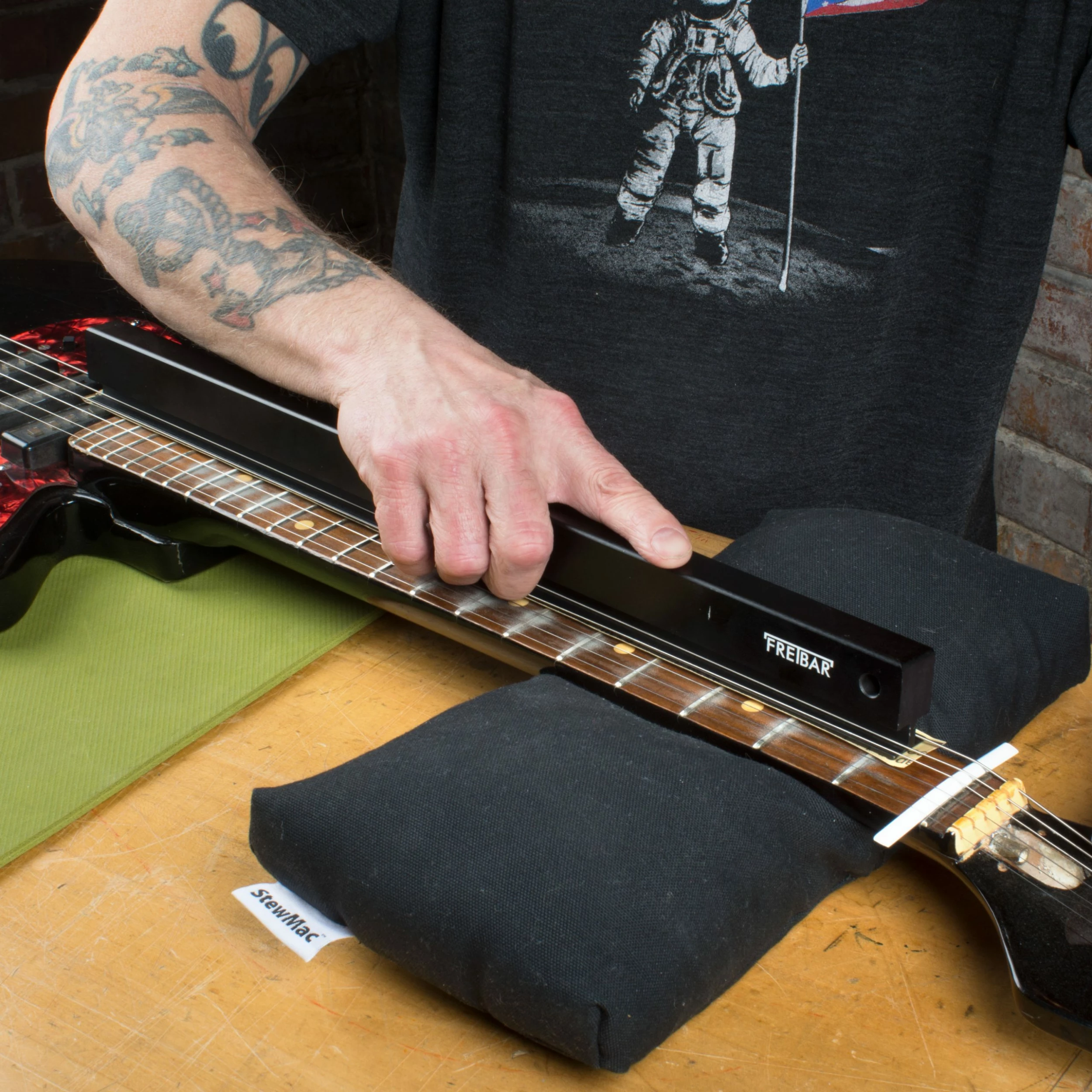

With the Fretbar you’ll level the frets with the exact tension the neck has when played. This is because the Fretbar fits UNDER and BETWEEN the strings, with the guitar tuned to pitch. The precision-ground surface is just 5/64″ thick, allowing you to glide under the strings when leveling.

Because the neck is under tension, you’ll clearly see every hump, twist, high or low spot. With the Fretbar you can level the frets without worry or any “surprises” that pop up after the job.

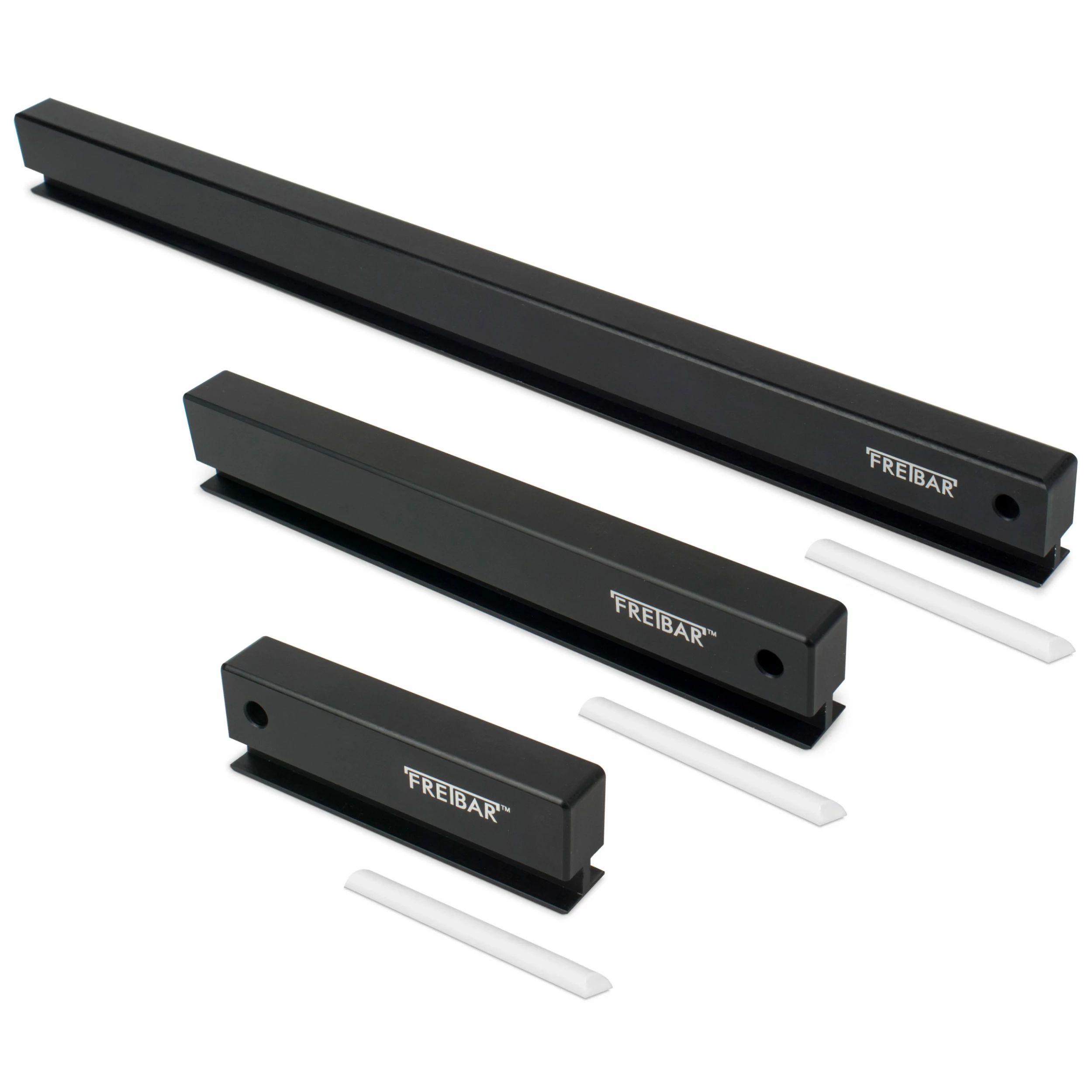

There is a Fretbar for every leveling job:

4.5″ length ideal for spot leveling problematic frets all over the neck. It’s also perfect for creating fallaway on acoustic guitars.

9″ length is designed for smaller necks like ukuleles and mandolins. It also works for leveling full scale necks and spot leveling.

18″ length makes it easy to level an entire neck. You’ll quickly and evenly level most of the frets at the same time, without the added danger of running into the nut, saddle, or hardware.

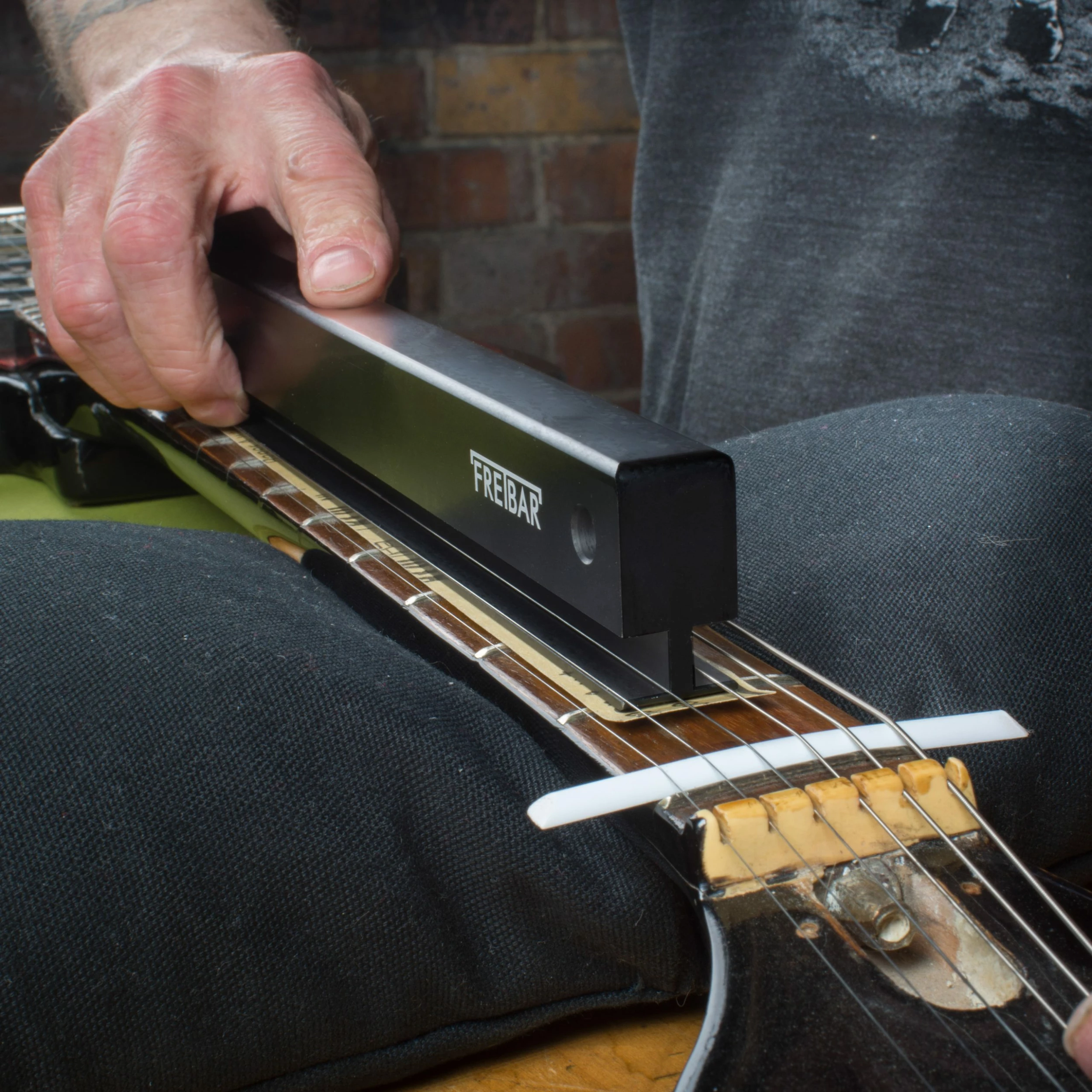

We also include the String Jack to use with the Fretbar. Put the jack in front of the nut to raise the strings without changing the tension on the neck. Replacement String Jacks are also available.

Works with the strings off too
This is also a great all around fret leveling tool. Used with the strings on or off, the precision-ground surface works quickly and accurately to get frets level. If you’re just getting started or have a ton of experience, the Fretbar is a great option for any fret work.

Built for a lifetime of use
• Made of durable extruded 6061 aluminum
• Guaranteed accuracy of ±0.0015″ per foot
• Designed to work with our custom 1″ wide 3M Stikit Gold Abrasives
• Works with the strings on or off

Your fastest and most profitable leveling ever

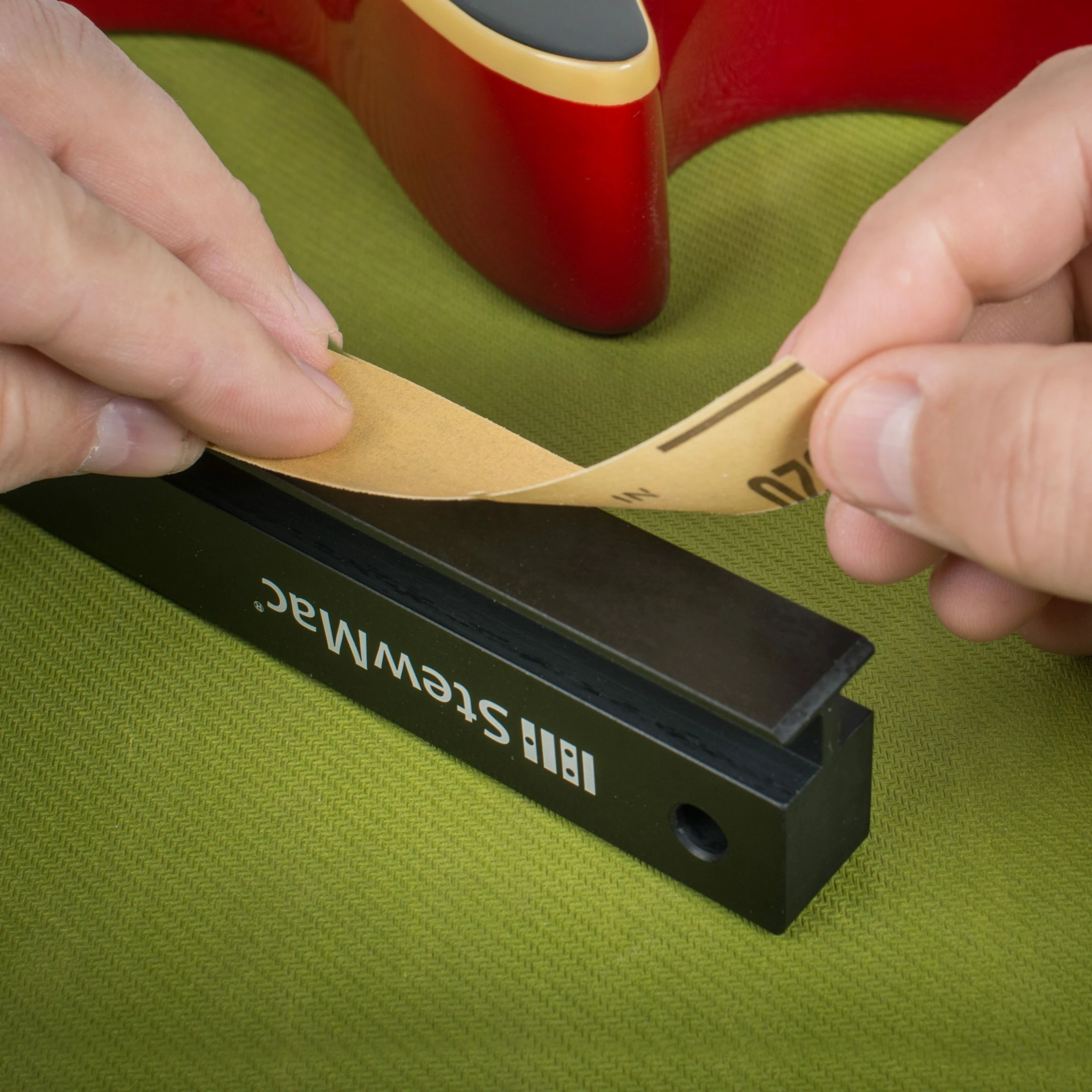

Because you don’t need to remove or replace the strings, you’ll save time on every leveling job. And with our 1″ wide 3M Stikit Gold Abrasives—already cut to the perfect width—you’re ready to level in an instant. No more wasted strings or sandpaper!

Save with the set: Fretbar and Stikit Set
Stikit Abrasives cut like a file, last longer than regular sandpaper, and are sized to stick right to the 1″ width of each Fretbar. These are the same professional sandpapers we use to quickly and cleanly level frets, and to remove the scratches before you recrown and polish.

Each set includes one Fretbar and four 15-yard rolls of Stikit, one of each grit: 320, 400, 600 and 800-grits. More grits are available separately.

Each Fretbar is 3/4″ (19mm) wide x 1-15/32″ (37mm) tall extruded aluminum, and available in three lengths: 4.5″ (114mm), 9″ (228mm), and 18″ (457mm).

Works on stainless frets, too!
All of our tools are suitable for use on stainless-steel fretwire*. Modern stainless-steel fretwire is known to be harder than the traditional nickel-silver blends, but our own shop experience indicates the wire does not cause premature wear of files or sandpapers.
*Excludes our original Fret Tang Nippers. We recommend our Deluxe Fret Tang Nippers for stainless-steel fretwire.
