JJ/Tesla Electrolytic Caps

JJ Electronic multi-section electrolytic can capacitors

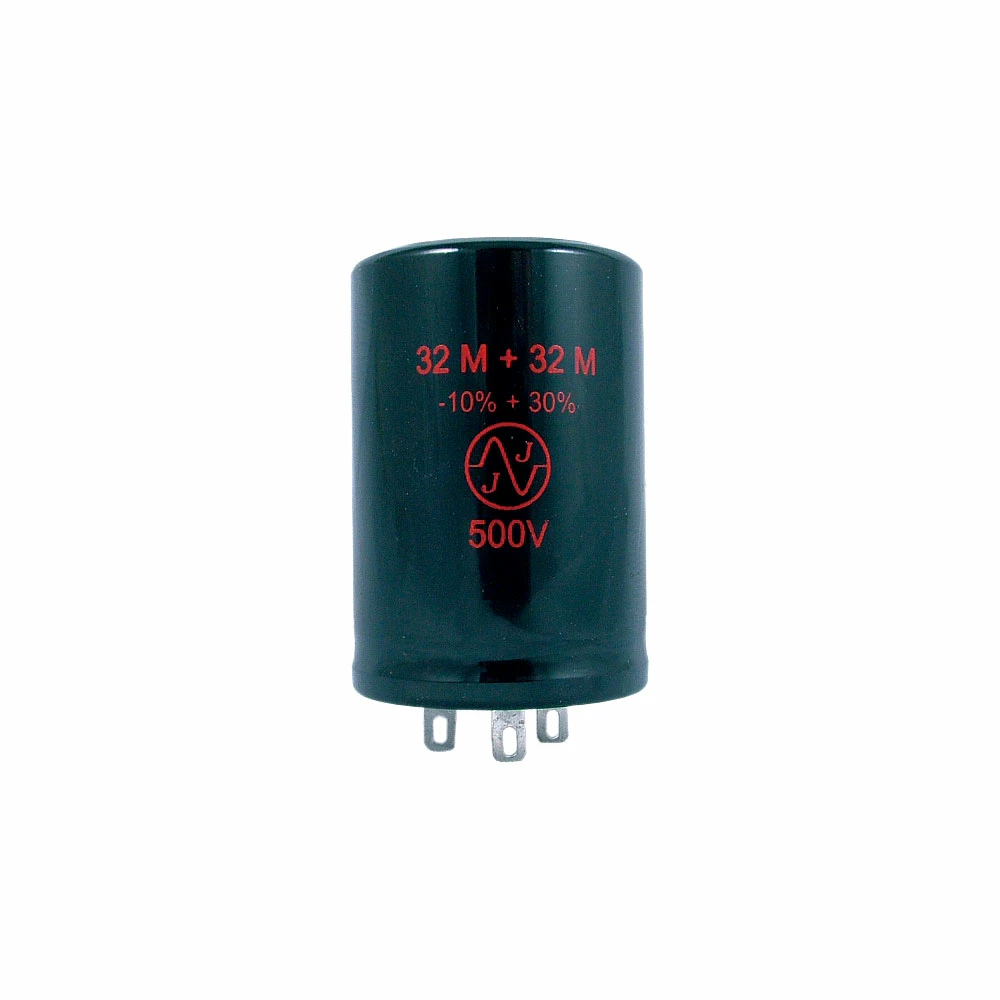

#50882 500V, 32/32uF, same diameter as LCR. Great for use in Marshall amplifiers. 1-3/8″ diameter x 2″ long.

Rated Capacitance	32+32 µF
Rated Voltage	500 V
max. tand at 100Hz, 20° C	0,20
Iac	150+150 mA

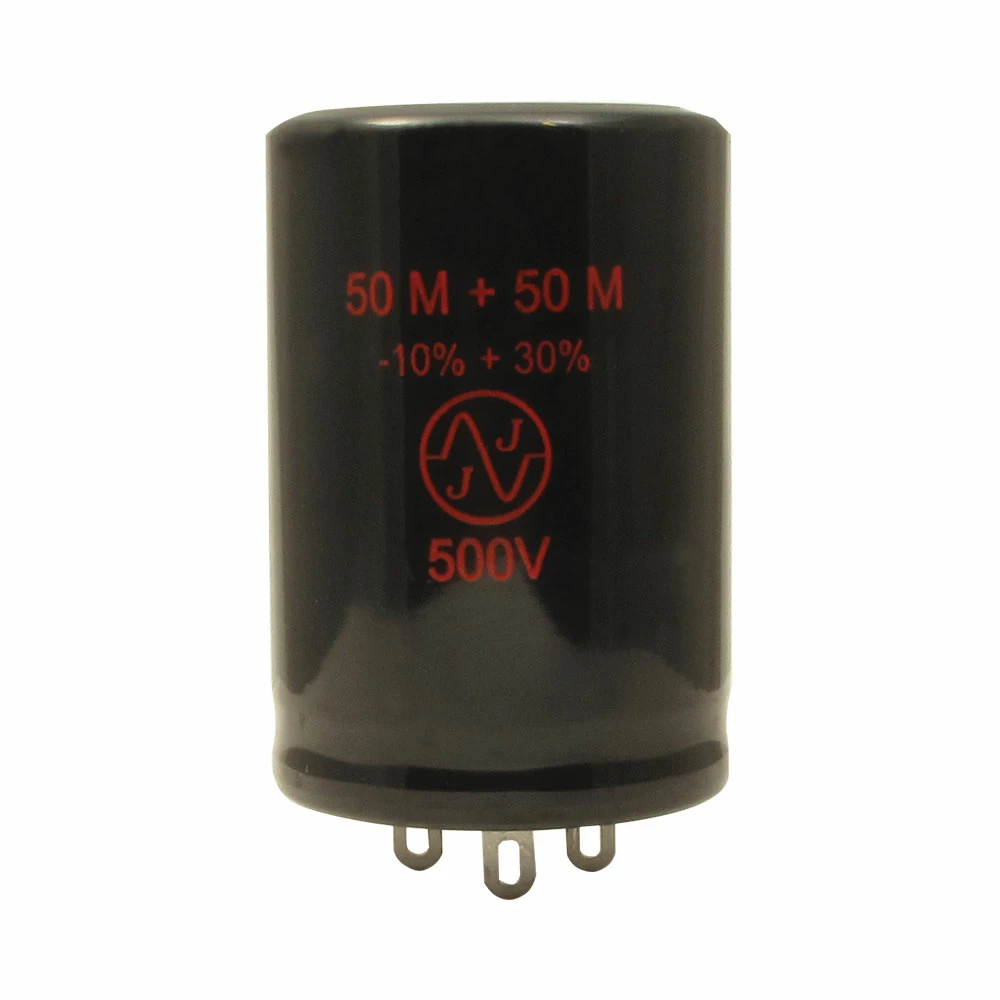

#50883 500V, 50/50µF,same diameter as LCR. Great for use in Marshall amplifiers. 1-3/8″ diameter x 2″ long.

Rated Capacitance	50+50 µF
Rated Voltage	500 V
max. tand at 100Hz, 20° C	0,20
Iac	200+200 mA

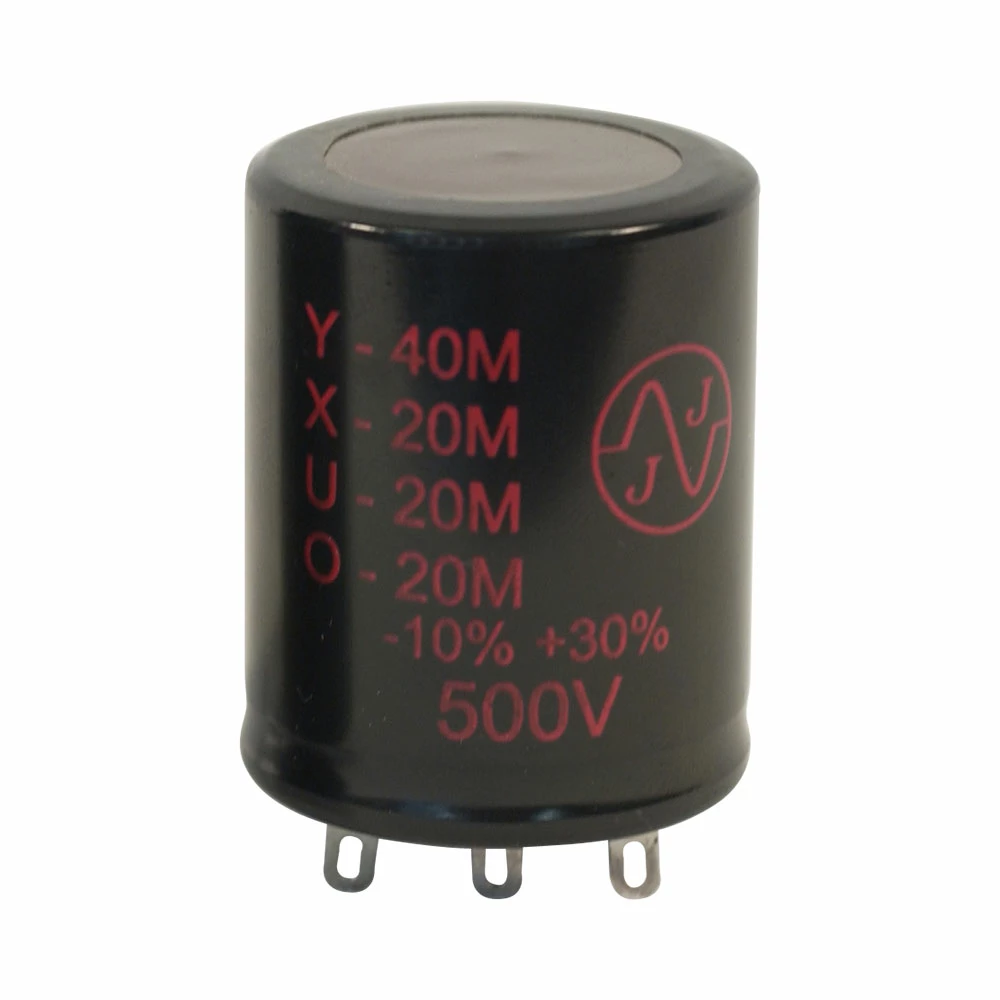

#50884 500V, 40/20/20/20 µF -10%+30% @ 500 V. 1-1/2″ diameter x 2″ height (40 x 50 mm). Clamp mount, solder lug terminals. Excellent for music industry applications.

Rated Capacitance	40+20+20+20 µF
Rated Voltage	500 V
max. tand at 100Hz, 20° C	0,20
Iac	160+3×80 mA
