Build-Your-Own Pickup Winder, 110-volt

Build the Schatten pickup coil winder yourself and SAVE!

It’s easy to assemble, and the kit includes instructions and all the parts. You supply simple hand tools and a soldering iron. Schatten’s redesigned smaller-profile machine is ideal for occasional pickup winding in the average repair shop.

Repair old pickups, build custom overwound, underwound and coil-tapped models, and create pickups for custom or specialty instruments: with a Schatten hand-feed winder you can do it all.

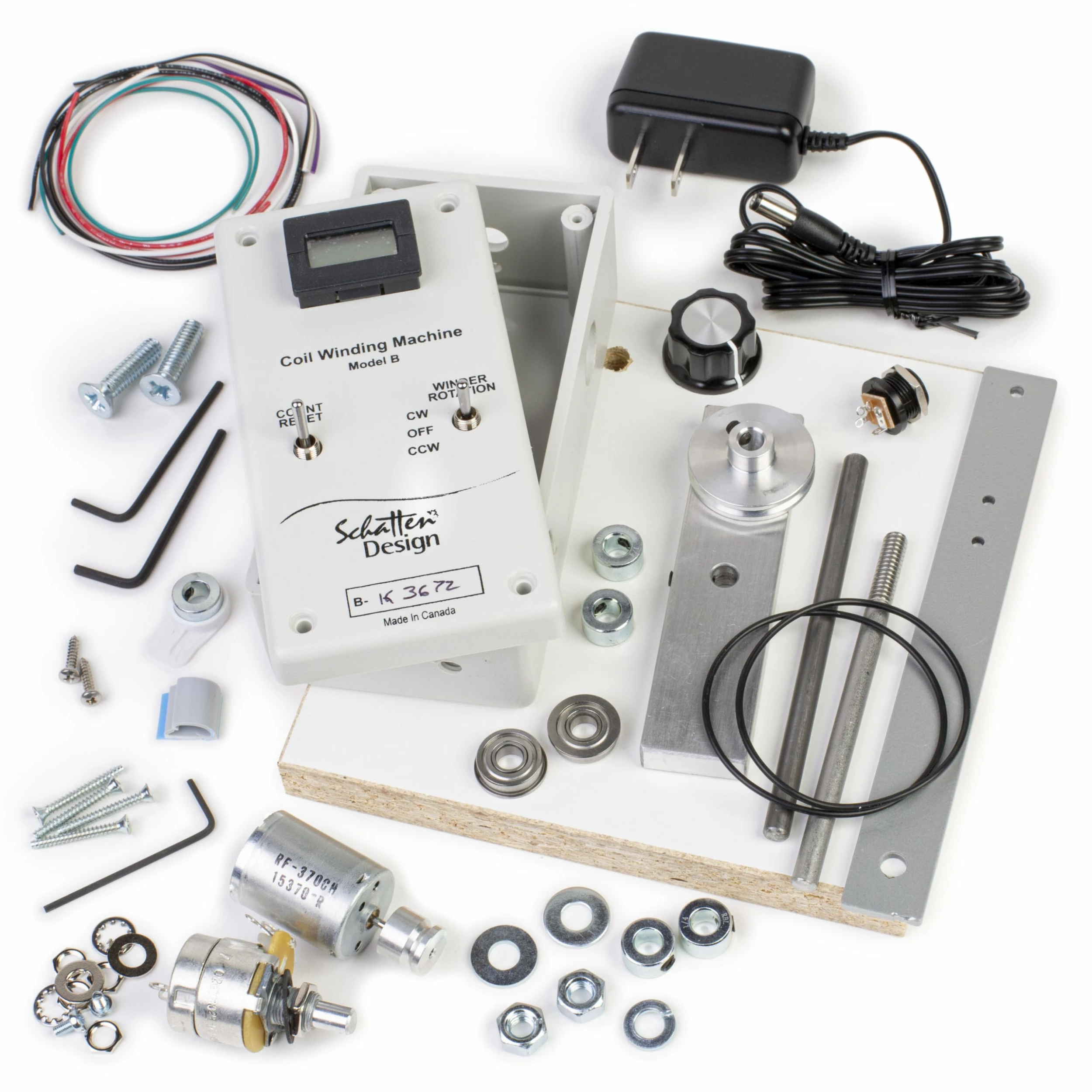

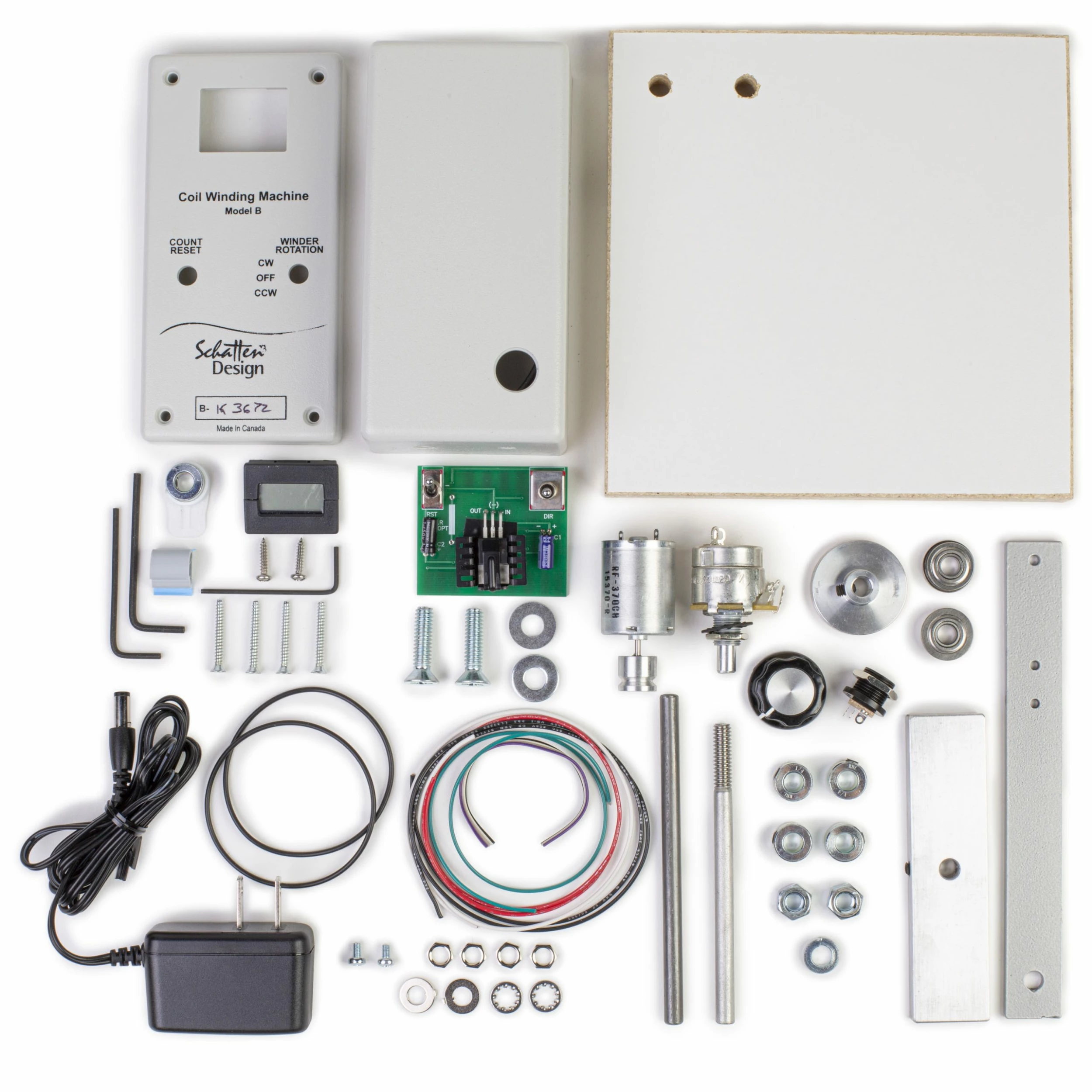

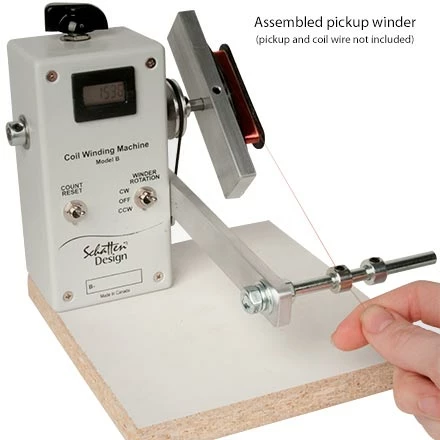

The kit includes everything needed to assemble a fully working Schatten Model B winding machine. The parts are pre-drilled, and assembly consists mostly of soldering work and parts installation.

Improved Schatten winder features:
• Single-arm design with switchable rotation direction
• Stronger motor for fast 900 rpm average winding speed
• Speed control
• Electronic counter with reset
• Adjustable cross-feed limiter for controlling pickup coil width
• Durable ABS enclosure with sturdy platform base
• Works with 38 to 44 gauge coil wire or finer
• 110-volt
