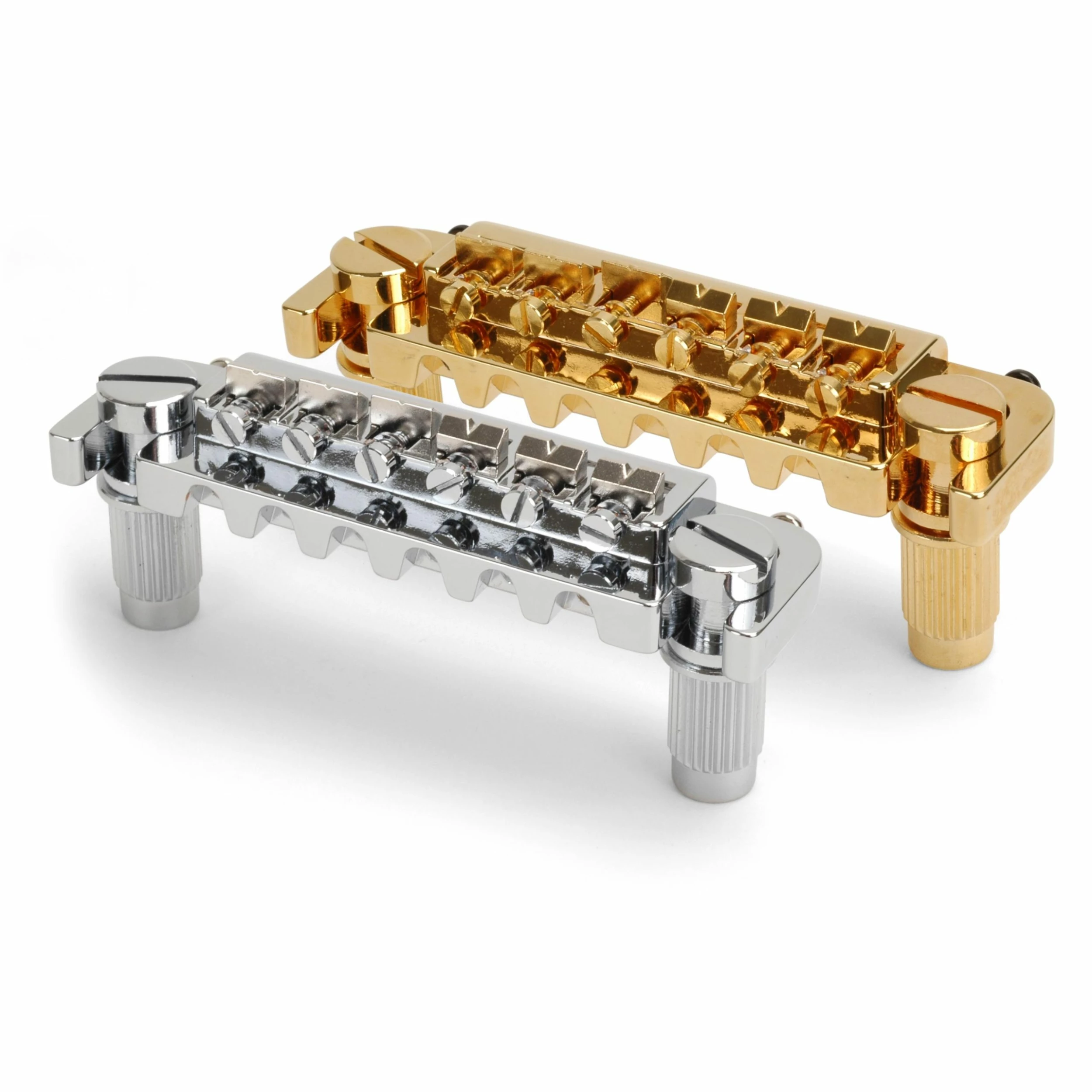

Adjustable Wraparound Bridge

A modern reproduction of the first combo bridge/tailpiece to feature individually adjustable saddles.

The wraparound design brought accurate intonation to Les Paul Junior®, SG Junior® and similar solidbody guitars, and has been popular since the 1970s.

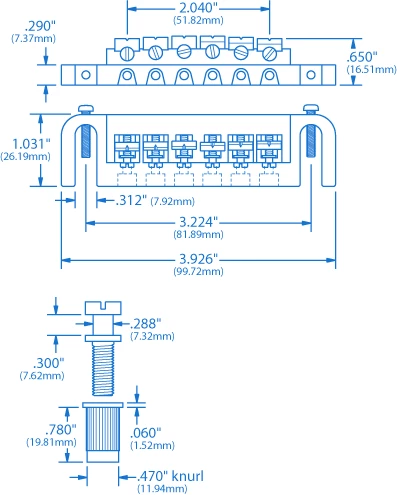

String spread
2-3/64″
(51.82mm)

Saddle radius
12″
(304.80mm)

Stud spacing
3-1/4″
(82.55mm)

Stud threads
M8 x 1.25mm

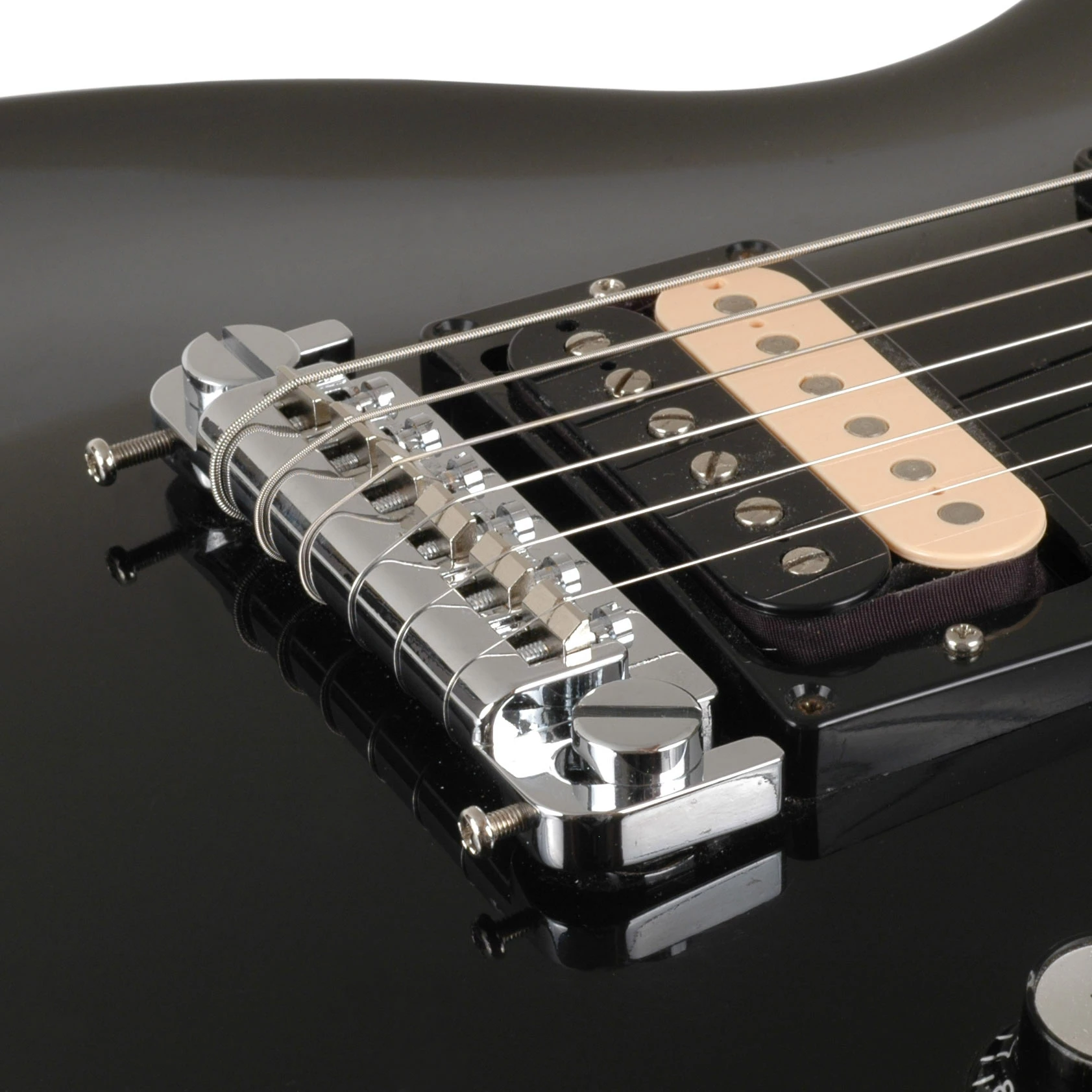

Two alignment screws adjust the overall intonation. The height-adjustable mounting studs include knurled bushings. The strings load from the front of the die-cast base, wrap over the back of the bridge, and over the notched saddles. Drill 7/16″ (11mm) holes for the bushings.

About bridge & tailpiece measurements

Bridge and Tailpiece Measurements Snippet

String spread is the distance between the centers of the outer strings on a bridge or tailpiece.

Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.

Stud/post spacing is the distance between the centers of the mounting posts of a bridge or ‘stop’ tailpiece.

Positioning the bridge
Find bridge placement for any scale with our free online tool fret position calculator.

Tip: Slotting Tune-o-matic style saddles
Nut slotting files work great for metal saddles. Choose your file size as you would when slotting a nut: use the same gauge as the string, or a few thousandths larger. After filing to the desired depth, we suggest polishing the slot with Mitchell’s Abrasive Cord to remove file marks and burrs.
