Accutronics Reverb Tank – StewMac

Accutronics Reverb Tank

New Production Accutronics Spring Reverb Tanks

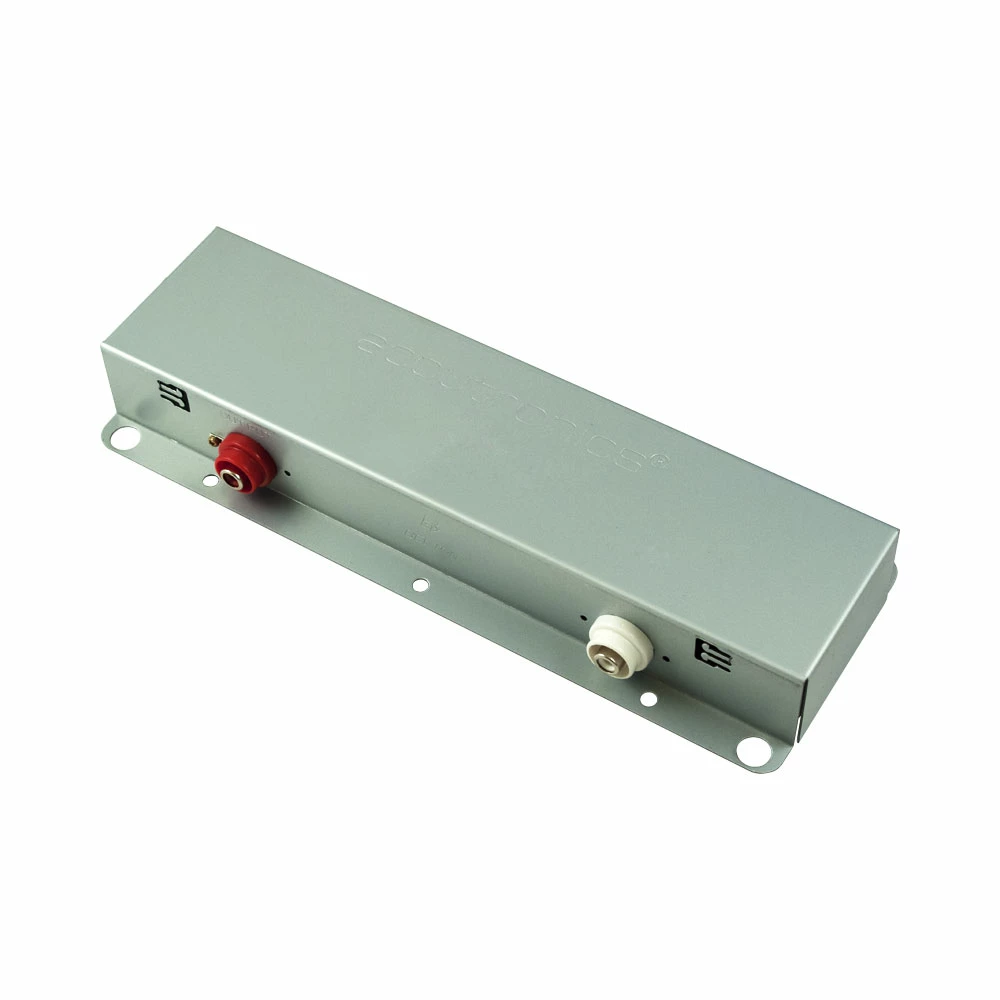

• #50814 – Replacement Reverb Tank for 4AB3C1B
• Solid, Sturdy Construction
• Long (16 ¾”) 2 Spring Unit , Long Decay (2.75-4.0 seconds)
• Input Impedance 8 Ohms, Output Impedance 2250 Ohms
• Input Insulated/Output Grounded
• Horizontal,Open Side Down Mounting Plane
• Made In South Korea

Used in Fender™amps with tube reverb from 1963-1990 such as the Princeton Reverb , Vibrolux Reverb , Deluxe Reverb , Super Reverb , Pro Reverb , Twin Reverb , Quad Reverb , Super Six Reverb, Vibrosonic Reverb. This also includes all reissue equivalents.

Other compatible amps include: Fender™ ’63 Reissue Reverb Unit, Fender™ Concert II , Mesa Boogie™ MK2C plus other models, LAB™ Series L5, L7, L9, Koch™ Powertone I , Ampeg™ VT-40 and Super Rocket SR212 , B-52™ AT-100.

• #50815 – Replacement Reverb Tank for 4EB3C1B
• Replacement Reverb Tank for 4EB3C1B
• Solid, Sturdy Construction
• Long (16 ¾”) 2 Spring Unit , Long Decay (2.75 – 4.0 seconds)
• Input Impedance 600 Ohms, Output Impedance 2250 Ohms
• Input Insulated/Output Grounded
• Horizontal, Open Side Down Mounting Plane
• Made In South Korea

Compatible Amps Include: Fender® Hot Rod Deville, Hot Rod Deluxe, Blues Deluxe (reissue only), Blues Deville (reissue only). Replaces Fender® Part Number 0050394000. Also, fits Traynor™ YCV50 as well as some Music Man™ and Peavey™ models. Suitable upgrade/ replacement for the Vox™ AC30CC series amp.

• #50816 – Replacement Reverb Tank for 8EB2C1B
• Solid, Sturdy Construction
• Short (9-1/4″) 3 Spring Unit , Medium Decay (1.75 to 3.0 seconds)
• Input Impedance 800 Ohms, Output Impedance 2575 Ohms
• Input Insulated/Output Grounded
• Horizontal, Open Side Down Mounting Plane
• Most commonly used short tank in reverb circuitry

Compatible Amps Include: Fender® Blues Jr., Deluxe 90, Princeton 65, Stage Series, Acoustasonic Junior, Vaporizer, Ultimate Chorus, Ultra Chorus, Sidekick Keyboard 60, Sidekick Reverb 35, Super 60, Super 112, Frontman 65R, Eighty-Five,

Tech 21® Trademark 30, Epiphone® Valve Junior Hot Rod, Vox® AC15CC, AC15C, Peavey®Envoy 110, Ultra 60/120, Backstage, Valveking, Plus others

• #50817 – Replacement Reverb Tank for 8AB2A1B
• Solid, Sturdy Construction
• Short (9-1/4″) 3 Spring Unit , Medium Decay (1.75 to 3.0 seconds)
• Input Impedance 10 Ohms, Output Impedance 2575 Ohms
• Input Grounded/Output Grounded
• Horizontal, Open Side Down Mounting Plane

Compatible Amps Include: Select Fender® and Mesa Boogie® models , Reverend® Hellhound(early), Goblin, and Kingsnake , PRS® SE-20, plus others

• #50818 – Replacement Reverb Tank for 8AB2D1A
• Solid, Sturdy Construction
• Short (9-1/4″) 3 Spring Unit , Medium Decay (1.75 to 3.0 seconds)
• Input Impedance 10 Ohms, Output Impedance 2575 Ohms
• Input Isolated/Output Isolated
• Horizontal, Open Side Up Mounting Plane

Compatible Amps Include: Select early models of the Roland® JC120, JC120UT , Bolt 60, Roland® Space Echo RE-201,RE-301, and RE-501 plus others

• #50819 – Replacement Reverb Tank for 9EB2C1B
• Solid, Sturdy Construction
• Long (16 ¾”) 3 Spring Unit , Medium Decay (1.75 to 3.0 seconds)
• Input Impedance 800 Ohms, Output Impedance 2575 Ohms
• Input Insulated/Output Grounded
• Horizontal, Open Side Down Mounting Plane

Compatible Amps Include: Vox® AC50CPH,AC100CPH, AC30CC, Peavey® Nashville 112, Fender® Hot Rod Deluxe/Deville, Plus others

Please note: Rubber grommets are not included with these tanks.
